Comtech EF Data DMD-2050E Specifiche Pagina 286
- Pagina / 342
- Indice
- RISOLUZIONE PROBLEMI
- SEGNALIBRI
Valutato. / 5. Basato su recensioni clienti
DMD2050E Universal Satellite Modem Ethernet Data Interface Setup
MN-DMD2050E Revision 2 H–4
H.1.5 Setting Up The DMD2050E Ethernet Bridge To Operate Like A FIFO
In certain circumstances, it may be desirable to have the Ethernet interface operate in a FIFO like
manner with no reordering of packets. This can be established by using a single port on the
Ethernet interface and setting the Ethernet QOS Type to Port Based and the Ethernet QOS
Queue to Strict Priority. When Setup and used in this manner, the packets will be transmitted in
the exact order in which they are received.

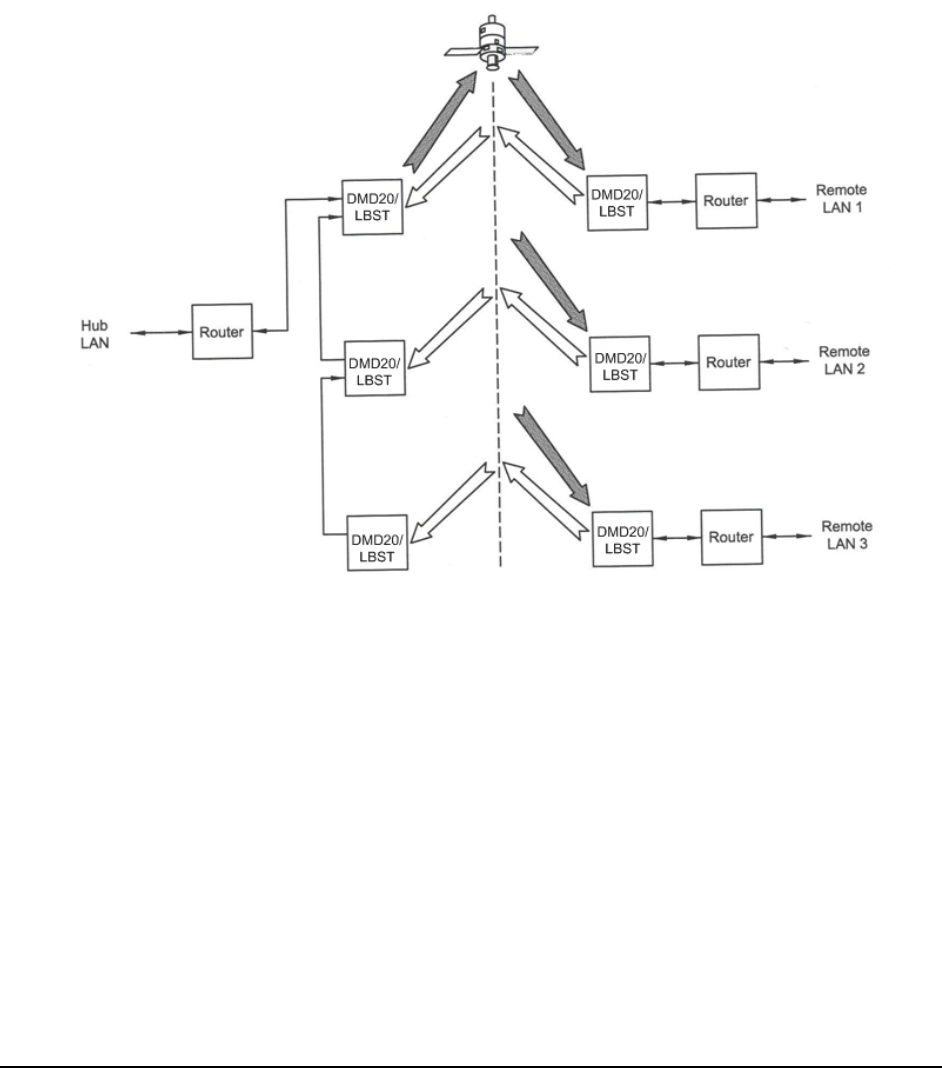

Figure H-1. Point-to-Multipoint with Daisy Chaining
