Chapter 3 - Using the Command Line Interface (CLI) 3-9

Vipersat Configuration

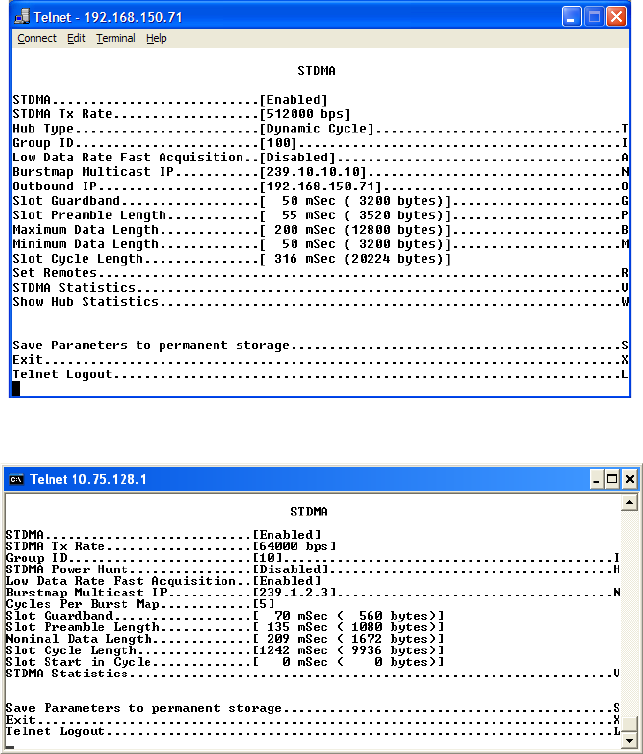

Figure 3-7

STDMA screen (Hub, Dynamic Cycle type)

Figure 3-8

STDMA screen (Remote)

STDMA

This menu item is read-only and shows the current state of STDMA in the

CDM-570/570L. In order to change the STDMA state in the CDM-570/570L,

refer to the section “Feature Configuration” on page 3-5.

STDMA Tx Rate

This menu item shows the STDMA transmit rate in bps. This item is read-only

and cannot be modified in this menu.
