CDD-562AL/564A/L Multi-Channel Demodulator Revision 0
HTTP (Web Server) Interface MN-CDD562AL564AL
10–25
10.5.4 Configuration | Routing | Routes
CAUTION
If you do not save these parameter changes to permanent storage, they will be lost
when the unit is reset or loses power. To save these changes to permanent storage,
go to the
Admin | Save
page and click
Save PaP Parameters
.

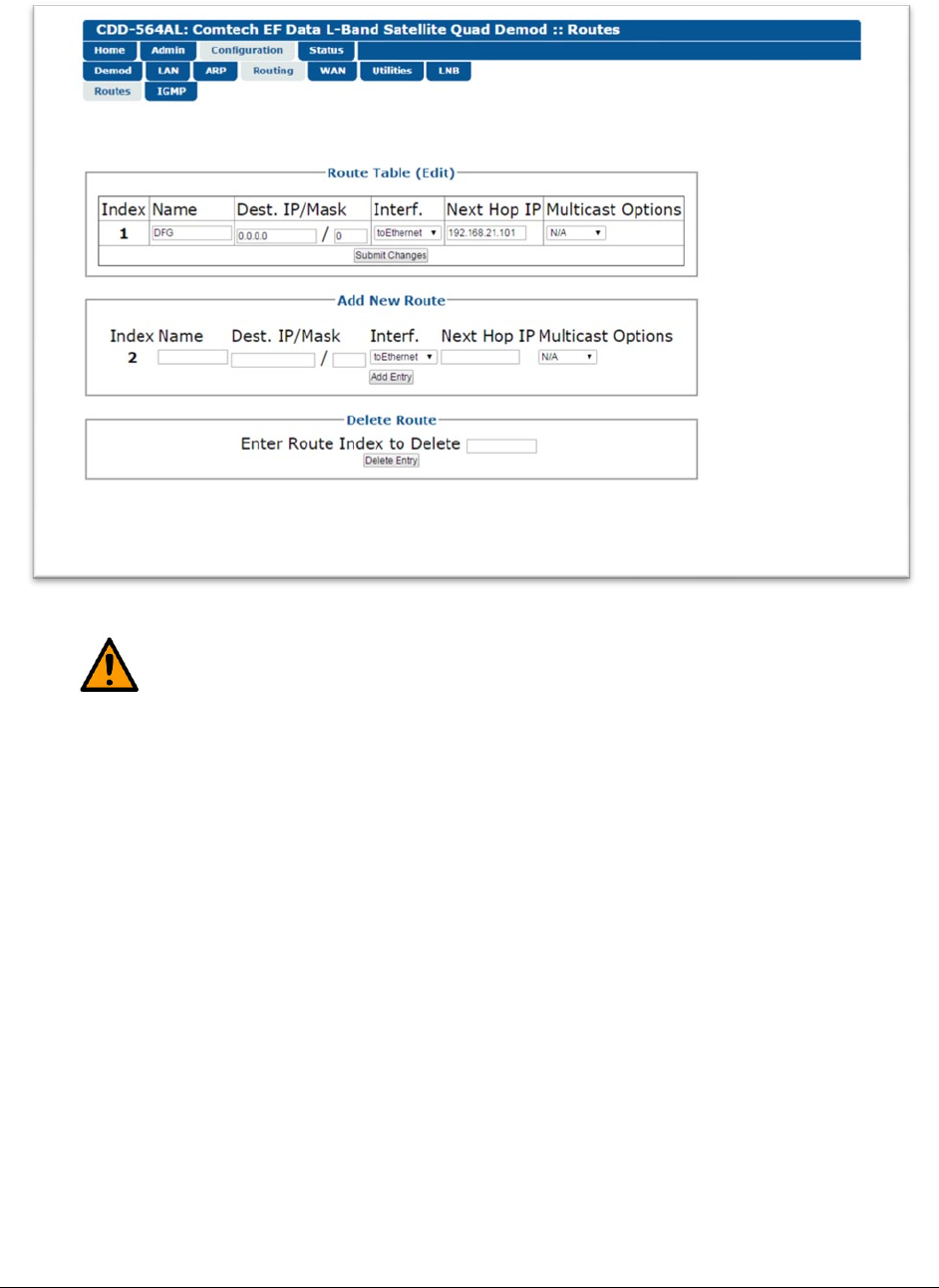

R oute Table (E dit)
Use this page section to change existing entries in the Route Table.
Name
Change the name for the Route Table Entry. The name must be unique and cannot have any whitespace.
Dest. IP/Mask
Change the address that sets the route to the destination network.
Interf.
The Interface is fixed at “toEthernet”. You cannot change it.
