CDD-562AL/564A/L Multi-Channel Demodulator Revision 0
HTTP (Web Server) Interface MN-CDD562AL564AL
10–36
10.6.2 Status | System Logs | Events Log
Use this page to see the log of system Events for a selected demodulator. You can clear the Events Log
from this page as well.

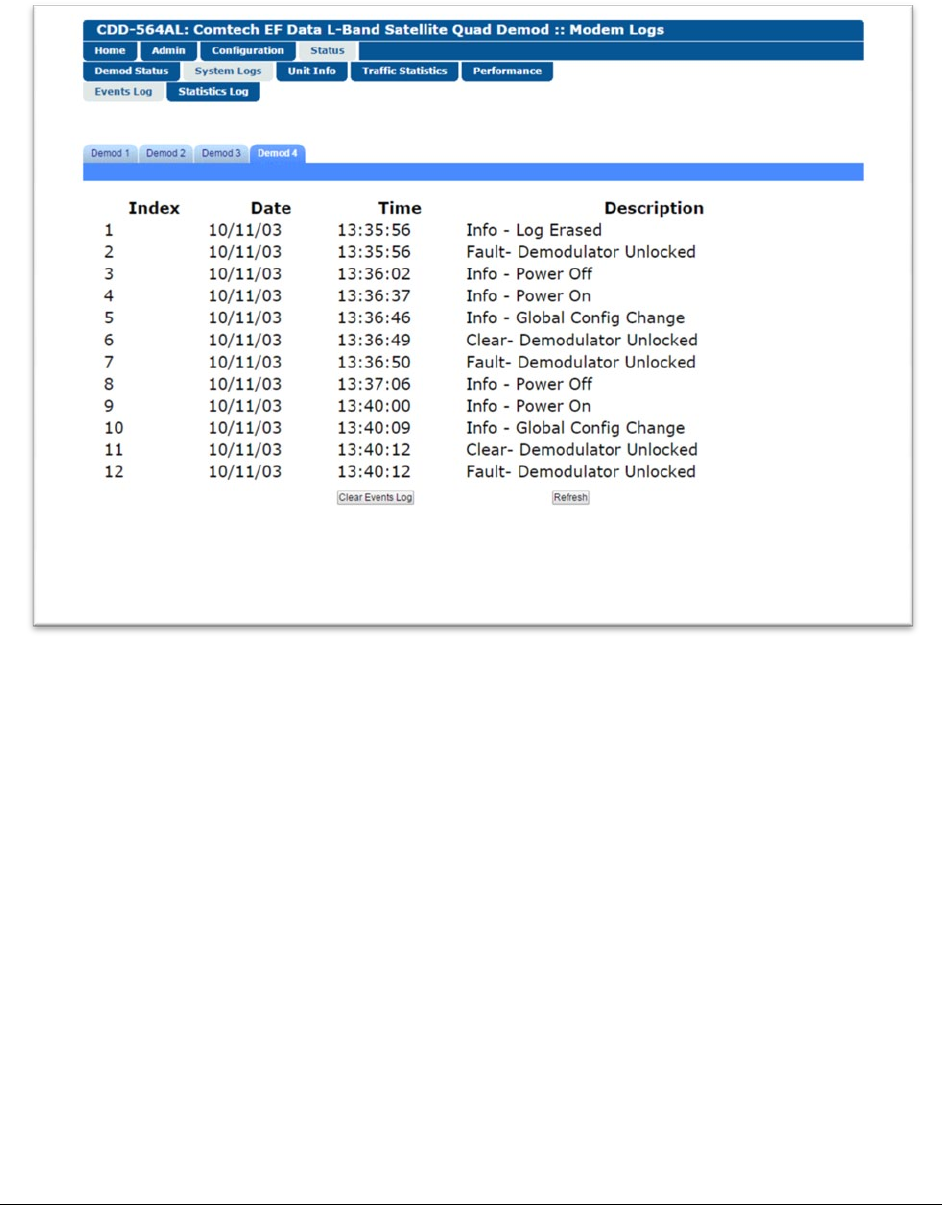

Figure 10-13. Status | System Logs | Events Log page
Click Refresh to show the most recent data.
Click Clear Events Log to delete the events from the log for the selected demodulator.
