Chapter 1. INTRODUCTION
1.1 Overview

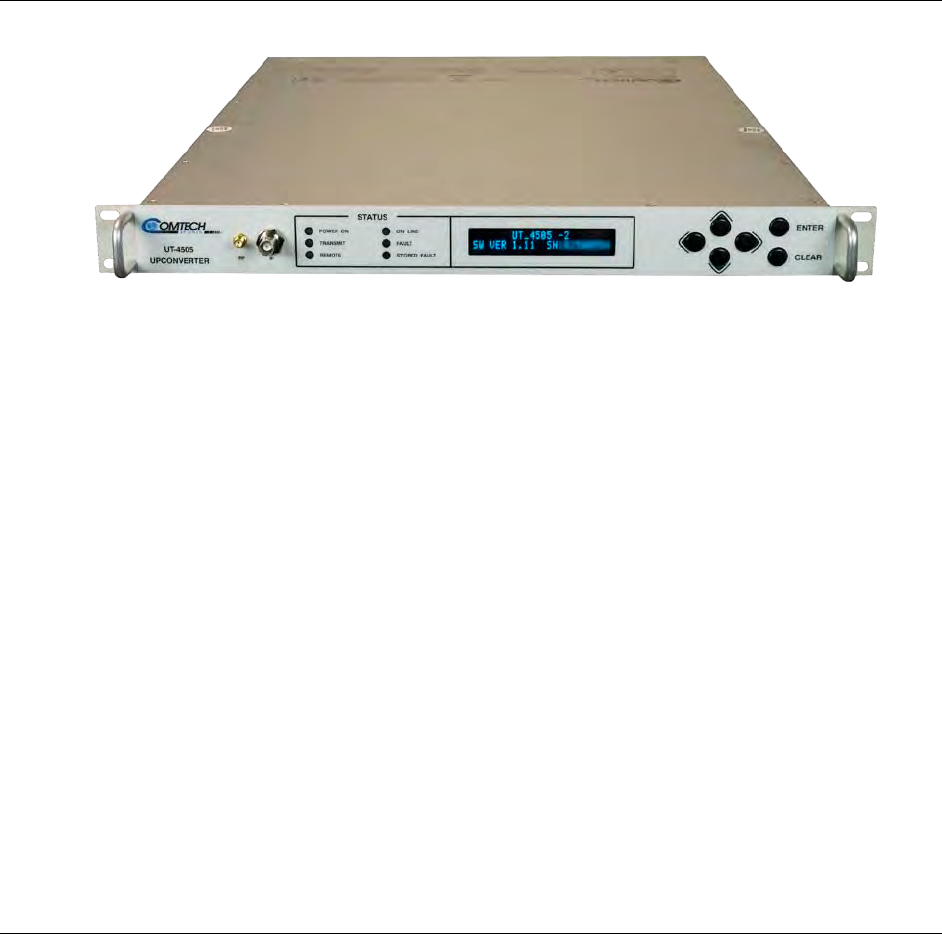

Figure 1-1. UT-4500-A Series Upconverters (UT-4505-A shown)
Comtech EF Data’s UT-4500-A Series Upconverters (Figure 1-1) are designed for the
transmission of SCPC, DAMA and TDMA signals in communication systems or satellite uplink
data systems. The Upconverters can also be used in communications system applications with
full transponder HDTV and analog TV.
The UT-4500-A Series Upconverter family of products comprises:
•
UT-4505-A •
UT-4514-A •
UT-4518-A
• UT-4505/E-A • UT-4514/C-A • UT-4518/E-A
• UT-4505/F-A • UT-4514/D-A
•
UT-4505/G-A •
UT-4514/E-A
•
UT-4505/H-A •
UT-4514/F-A
•
UT-4505/I-A
•
UT-4505/J-A
• UT-4505/M-A
Individual specifications for each model are included in this chapter.
