OM20 Universal Outdoor Modem Web Browser/Remote Protocol
MN-OM20– Revision 5 6–49
6.3.4.5 Alarms Menu
Transmit Menu

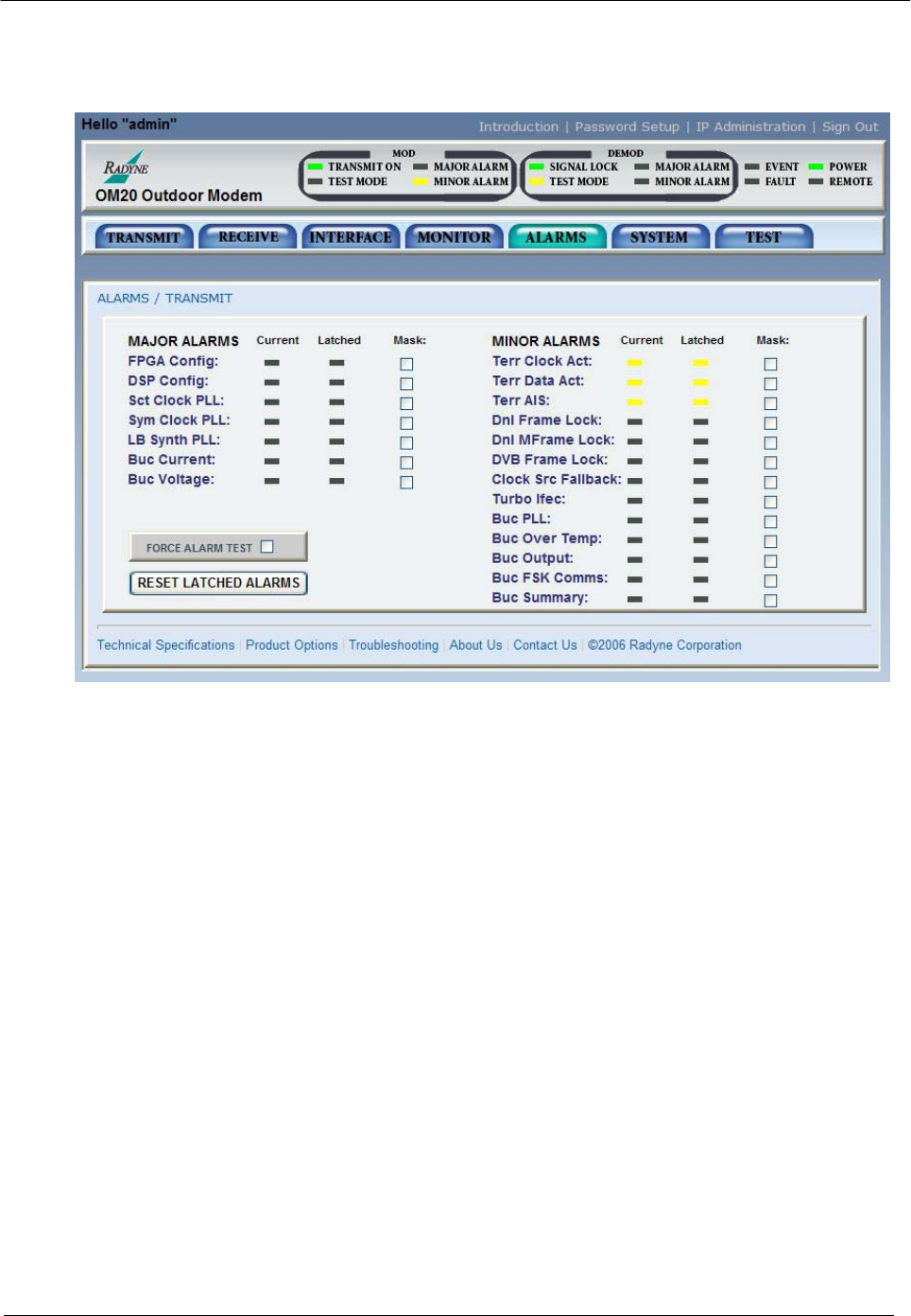

Figure 6-24. Transmit Menu
MAJOR ALARMS
FPGA Config: {Pass/Fail, Unmasked/Masked}
Indicates a transmit FPGA configuration failure.
DSP Config: {Pass/Fail, Unmasked/Masked}
Indicates a transmit DSP configuration failure.
Sct Clock PLL: {Pass/Fail, Unmasked/Masked}
Indicates that the Tx SCT Clock PLL is not locked. This alarm
will flash on during certain modem parameter changes. A solid
indication points toward a configuration failure within the
modem.
Sym Clock PLL: {Pass/Fail, Unmasked/Masked}
Indicates that the Tx Symbol Clock PLL is not locked. This
alarm will flash on during certain modem parameter changes. A
