OM20 Universal Outdoor Modem Web Browser/Remote Protocol
MN-OM20– Revision 5 6–51
FORCE ALARM TEST: Clicking on this button will force alarms
Receive Menu

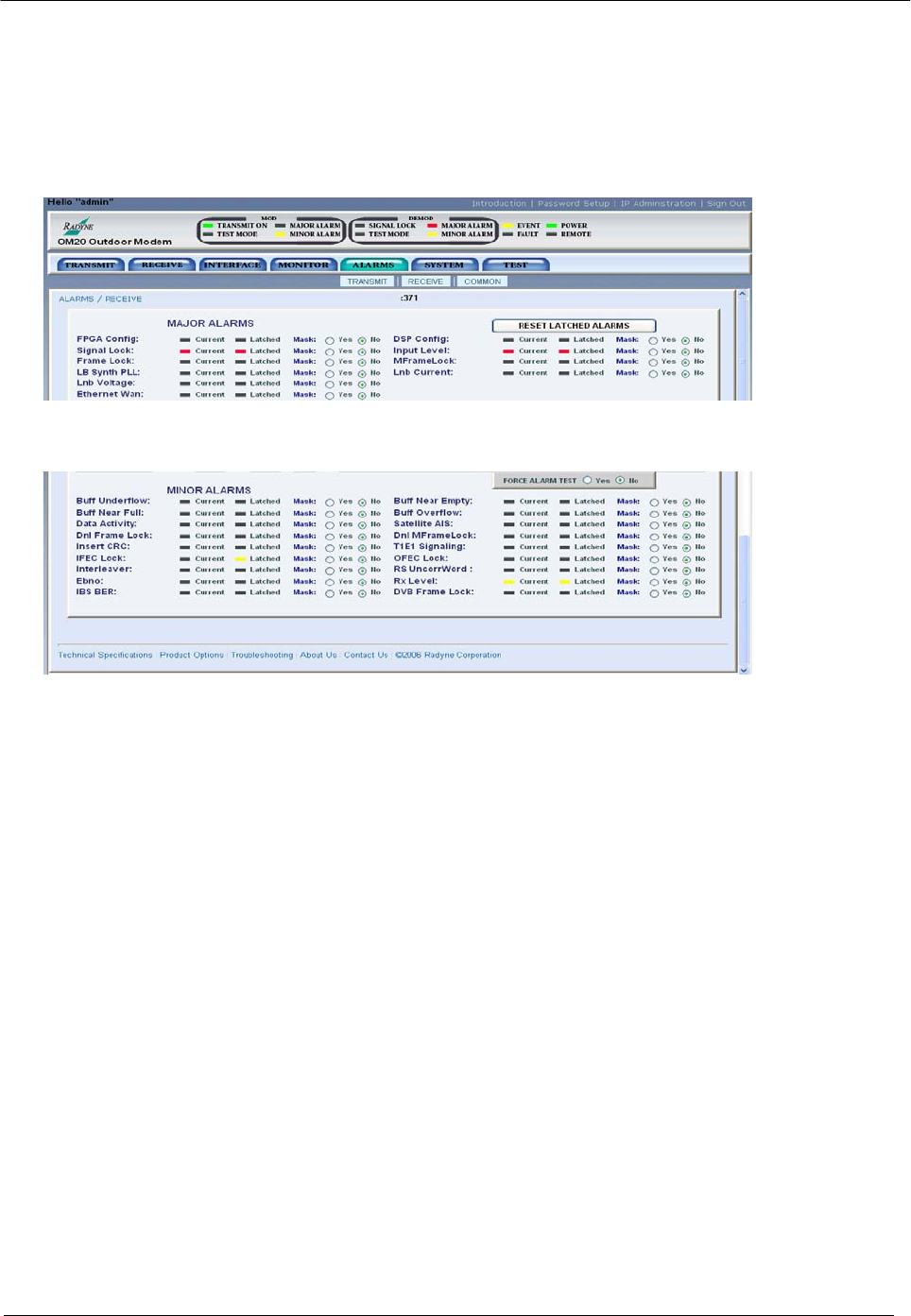

Figure 6-25. Receive Menu
MAJOR ALARMS
FPGA Config: {Pass/Fail, Unmasked/Masked}
Indicates a receive FPGA hardware failure.
DSP Config: {Pass/Fail, Unmasked/Masked}
Indicates a receive DSP failure.
Signal Lock: {Pass/Fail, Unmasked/Masked}
Indicates that the demod is unable to lock to a signal.
Input Level; {Pass/Fail, Unmasked/Masked}
Indicates Rx signal level has fallen below input threshold.
Frame Lock: {Pass/Fail, Unmasked/Masked}
Indicates that the Framing Unit is unable to find the expected
framing pattern.
MFramelock: {Pass/Fail, Unmasked/Masked}
