CRS-300 1:10 Redundancy Switch Revision 16
Cable Drawings MN/CRS300.IOM
A-36
A.4.20 T1/E1 Adapter for CDM-570/570L, -600/600L

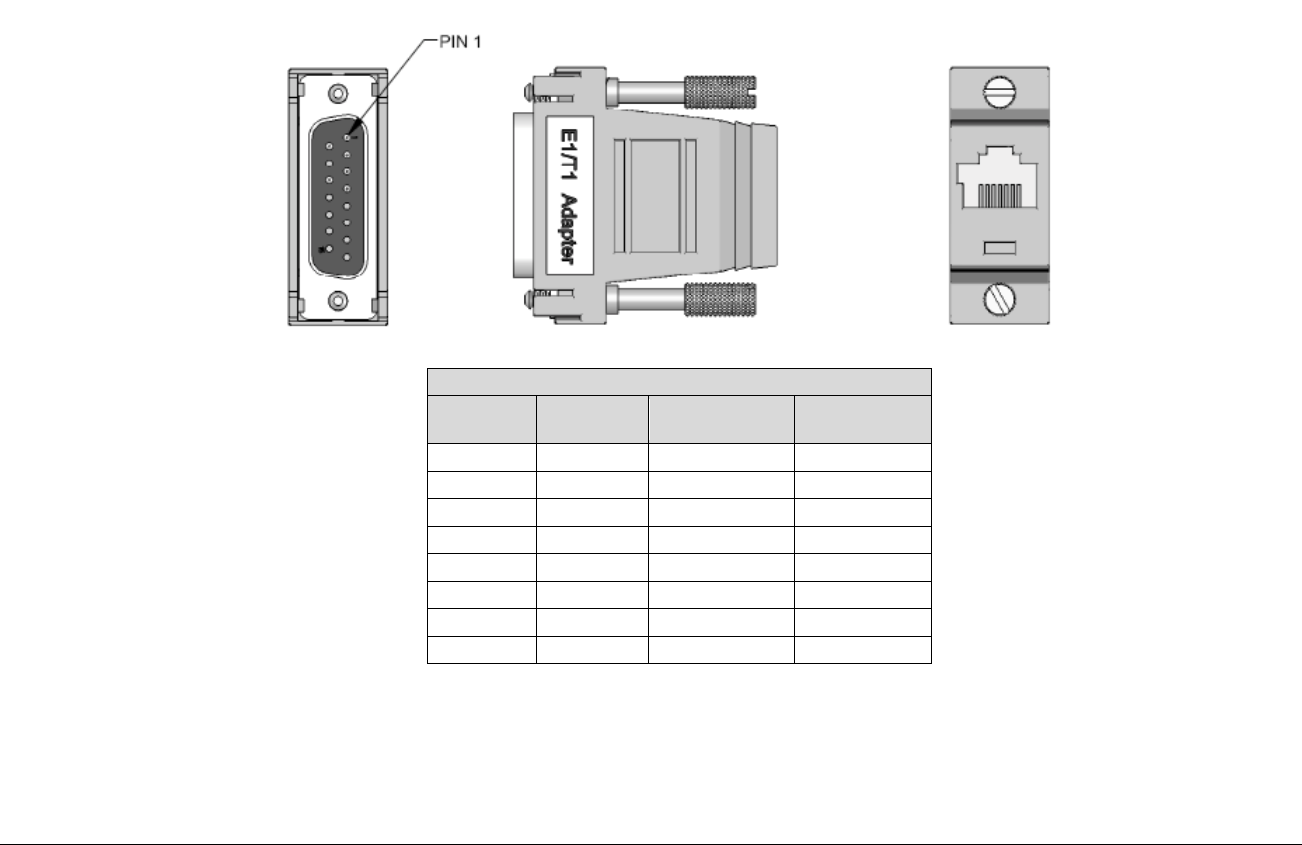

Figure A-32 shows the optional adapter used to convert the Type ‘D’ 15-pin female Balanced G.703 connector on the User side of the TMI
to a standard RJ-48 female connector for T1/E1 operation.
WIRE LEGEND
RJ-48
PIN #
DB-15M
PIN #
WIRE
COLOR
SIGNAL
NAME
1 9 BLUE Tx+
2 1 ORANGE Tx-
3 2 BLACK GND
4 11 RED Rx+
5 3 GREEN Rx-
6 4 YELLOW GND
7 BROWN NC
8 WHITE NC
Figure A-32. T1/E1 Adapter for CDM-570/570L, -600/600L (CN-00002680
