5–1
Chapter 5. ETHERNET
MANAGEMENT
5.1 Introduction
The CDM-840 Remote Router is equipped with an RJ-45 10/100 BaseT Fast Ethernet
management interface, labeled MANAGEMENT FE, that is used for monitor and control
purposes.
This chapter provides a high-level overview of the functionality provided by this interface, and
references other chapters in this manual for further details.
5.2 Ethernet Management Interface Protocols
The router’s 10/100 BaseT Fast Ethernet (FE) Management Interface supports two management
protocols:
• SNMP with public and private MIB
• Web Server (HTTP) Interface for complete product management
5.2.1 Ethernet Management Interface Access
Access to the CDM-840 Ethernet
Management Interface requires the user to
specify the unit’s Management IP Address.
This address may be obtained via use of a
terminal emulator connected to the 9-pin

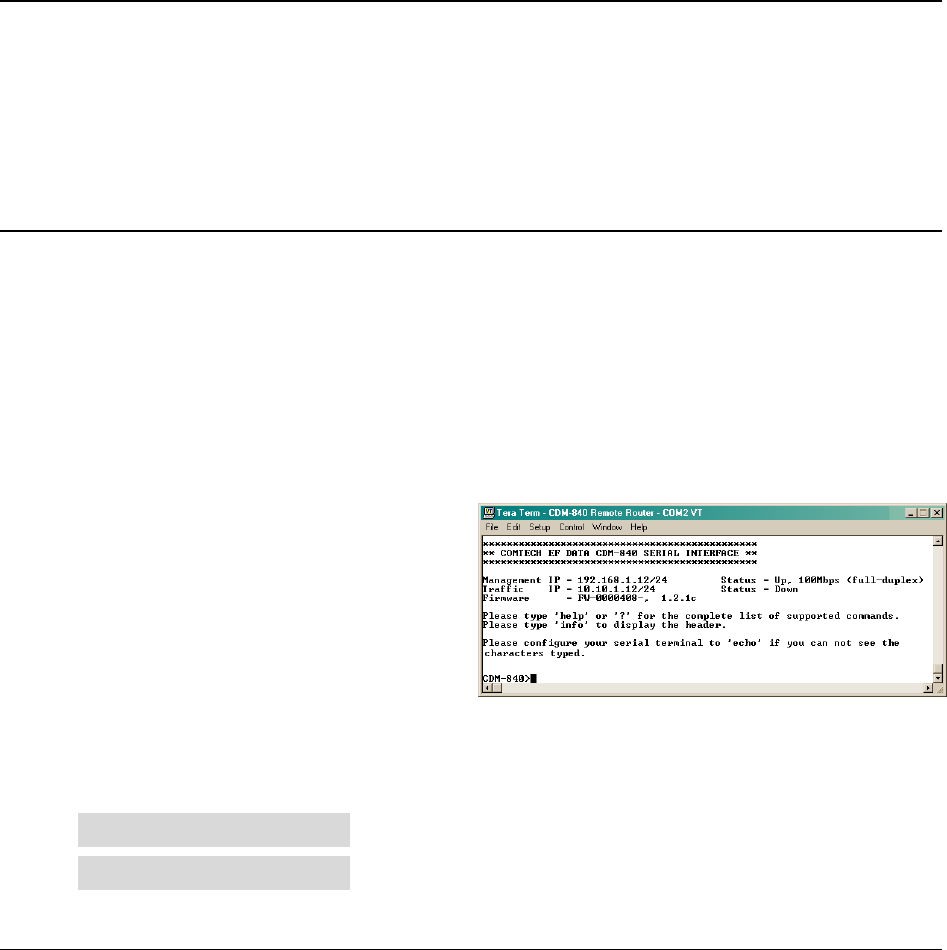

serial CONSOLE port. As per the example
shown to the right, a number of operational
parameters (including the unit’s factory-
default IP addresses) are displayed upon
power-up of the unit.
The default (factory-assigned) IP addresses are as follows:
Management IP Address 192.168.1.12
Traffic (GigE) IP Address 10.10.3.12
