CDM-840 Remote Router Revision 0
Appendix A MN-CDM840
A–3

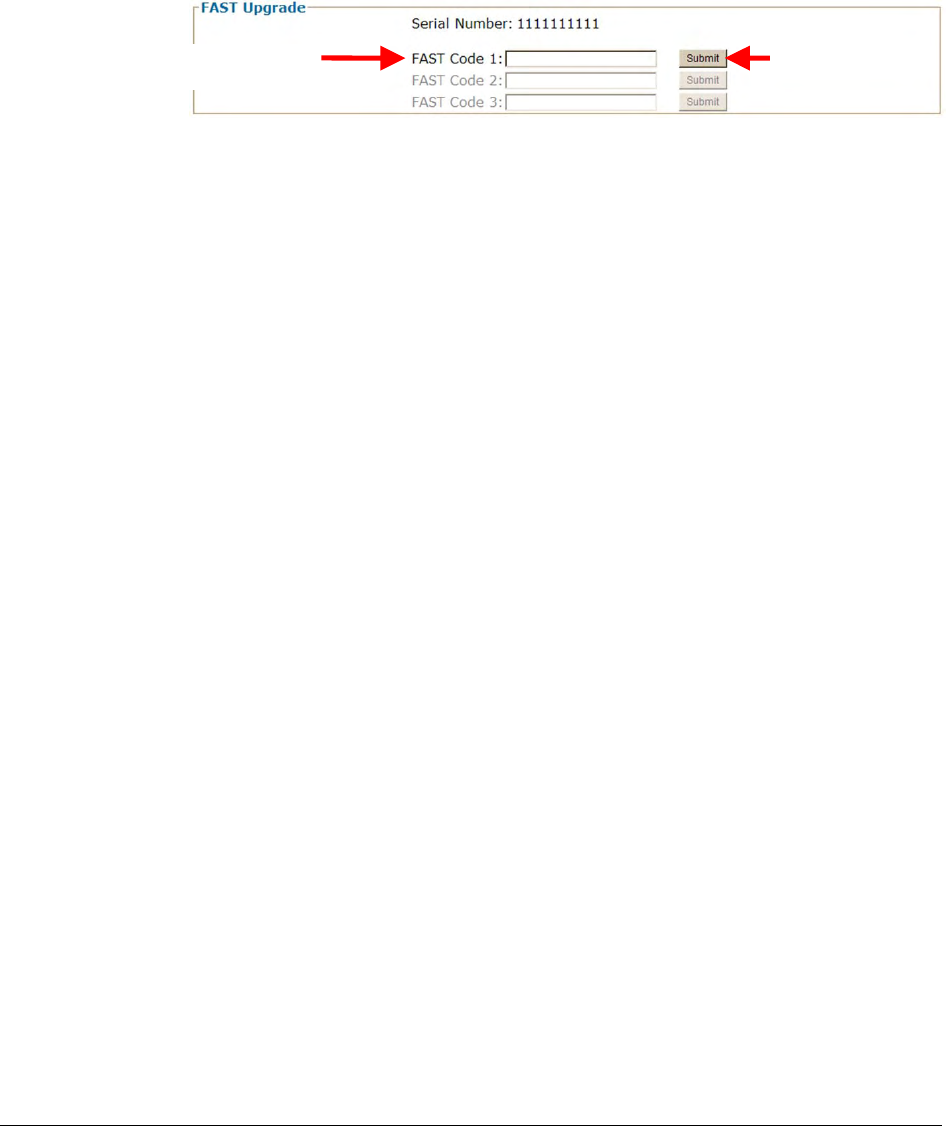

1. Enter the 20-character FAST
Option Purchase Access Code here
2. Click when done.
A.2.3 Acquire/Enter FAST Access Code
Once a valid unit serial number is provided to and verified by the Comtech EF Data sales
representative, Comtech EF Data Customer Support will then provide an invoice, the 20-digit
FAST Access Code, and FAST option activation instructions. The user should carefully enter the
FAST Access Code into the FAST Code 1 text box (provided in the FAST Upgrade section of
the ‘Admin | FAST’ page), then click [Submit].
A.2.4 Verify FAST Option Availability
If the FAST Access Code is accepted, the page is refreshed once [Submit] is clicked, and the
Status column in the FAST Configuration section is updated accordingly.
