Ku-Band Satellite Transceiver Revision 9
Redundant Equipment Mounting MN/KST2000AB.IOM
D–7
(continued) Kit KT/8095, which includes:
Qty. Description Qty. Description
4 Threaded rod, 5/16-18 x 14”.
Comtech EFData
Part # HW/RD5/16-18X14.
Used for round and square pole mount only.
8 Flat fitting plate, 5/16”.
Comtech EFData
Part # HW/FIT-PLT-5/16.
D.2.2.2 1:1 Converters Round Pole Mounting Instructions
1. Position the (2), 20” Unistrut channels on the backside of the RJU-2000 switch
box, aligning and centering the two center slots of the channel with the
mounting holes of the switch box. Fasten with the provided 1/4” hardware (4
each bolts, split and flat washers).
2. Position the converters with fins down and mounting brackets facing upwards
leaving a gap between roughly the width of the RJU-2000 switch box (refer to
Figure D-3). Position and orient the channels, with the switch box attached, onto
the converters brackets with the switch box between the converters. Ensure all
items are oriented correctly and fasten with the provided 1/4” hardware (12 each
bolts, split and flat washers).

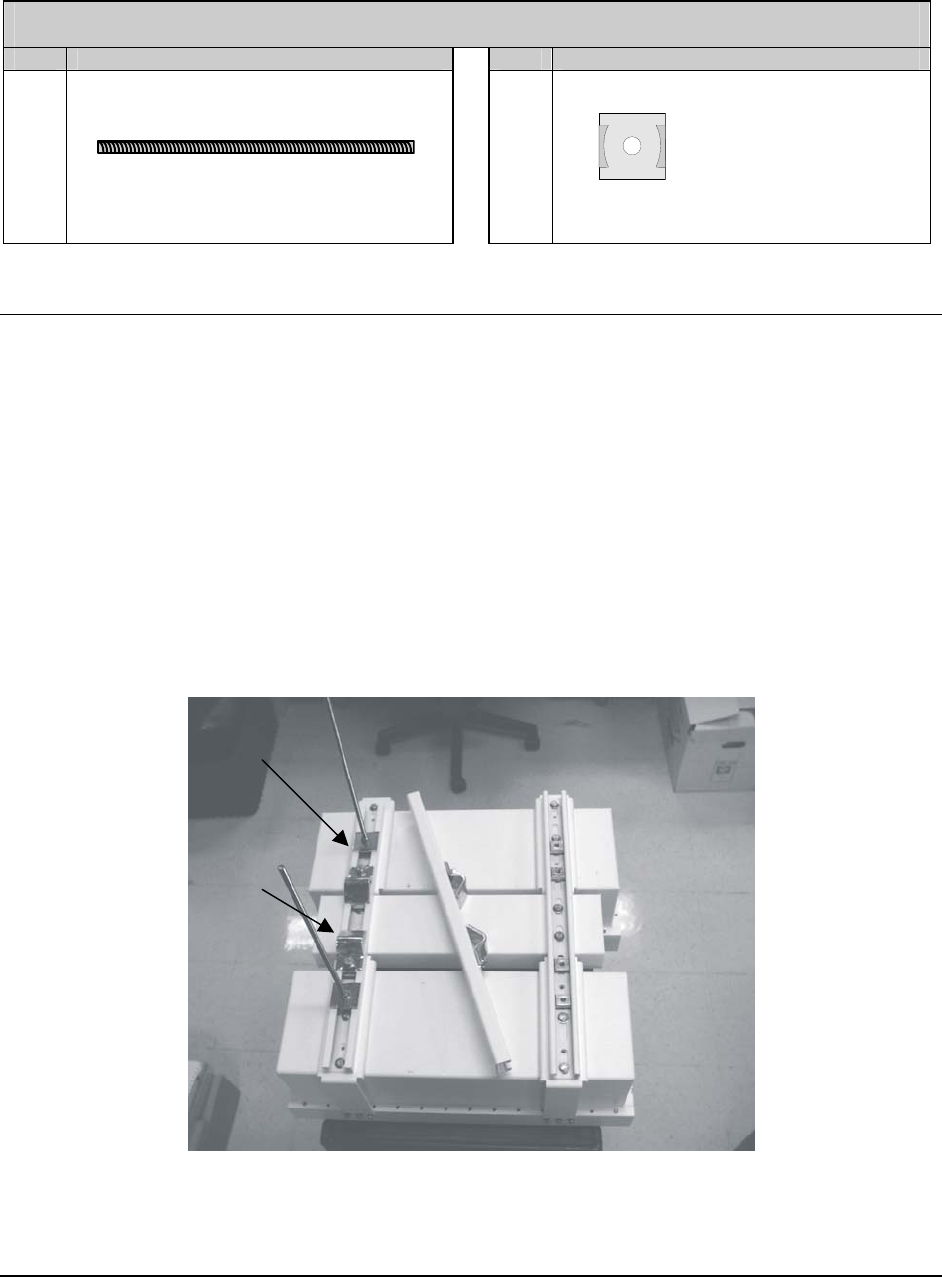

Figure D-3. KST-2000A 1:1 Converters With Mounting Brackets
Flat Fitting Plates
Pipe Block
