OM20 Universal Outdoor Modem Web Browser/Remote Protocol
MN-OM20– Revision 5 6–54
Common Menu

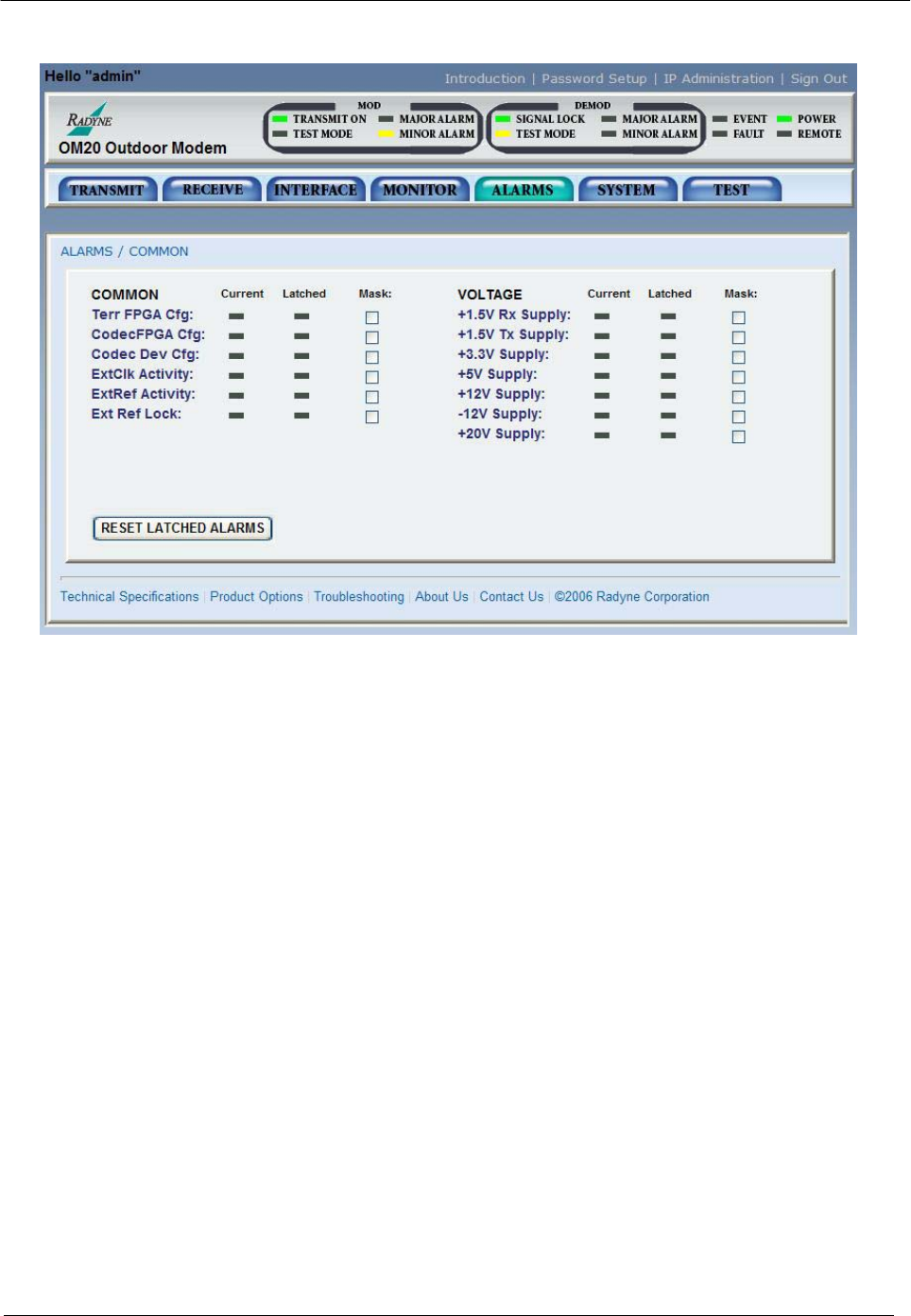

Figure 6-26. Common Menu
COMMON ALARMS
Terr FPGA Cfg: {Pass/Fail, Unmasked/Masked}
Indicates an Interface Card FPGA configuration failure.
Codec FPGA Cfg: {Pass/Fail, Unmasked/Masked}
Indicates Turbo Codec Card FPGA configuration failure.
Codec Dev Cfg: {Pass/Fail, Unmasked/Masked}
Indicates Turbo Codec Card ASIC configuration failure.
ExtClk Activity: {Pass/Fail, Unmasked/Masked}
Indicates External Clock Activity failure.
ExtRef Activity: {Pass/Fail, Unmasked/Masked}
Indicates External Reference Activity failure.
ExtRef Lock: {Pass/Fail, Unmasked/Masked}
