OM20 Universal Outdoor Modem Web Browser/Remote Protocol
MN-OM20– Revision 5 6–12
6.3.3.2 Configuring Applications

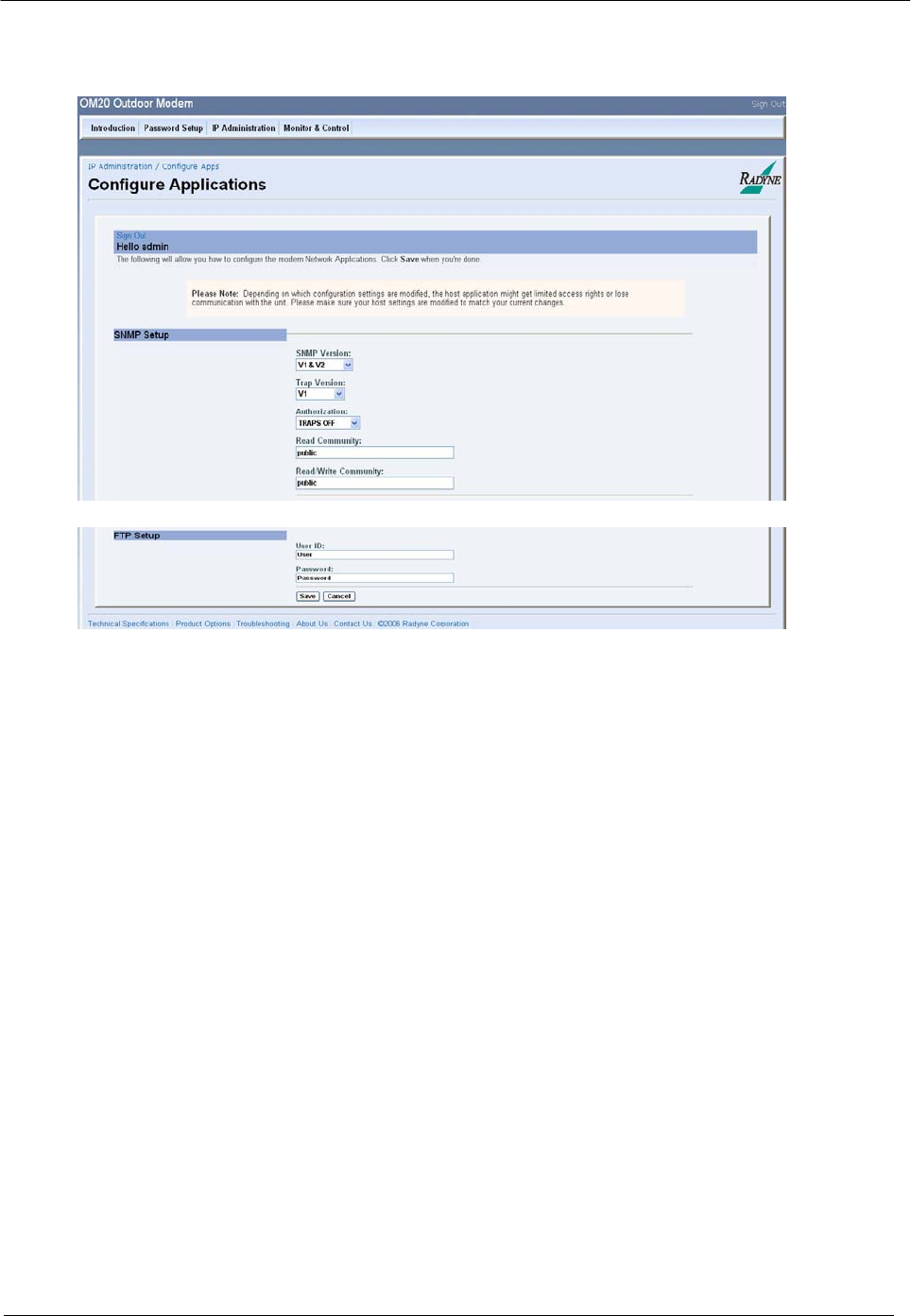

Figure 6-7. Configuring Applications
SNMP Setup:
SNMP Version: {V1 & 2, V3} Default = V1 & V2
Trap Version: {V1 & 2} Default = V1
Authorization: {TRAPS ON, TRAPS OFF} Default = TRAPS OFF
Read Community: {Public} Default
Read/Write Community: {Public} Default
FTP Setup:
UserID: User
Password: Password
