RCS20 M:N Redundancy Switch Revision 15
RCS20 L-Band Setup and Configuration MN-RCS20 and CD-RCS20
C–2

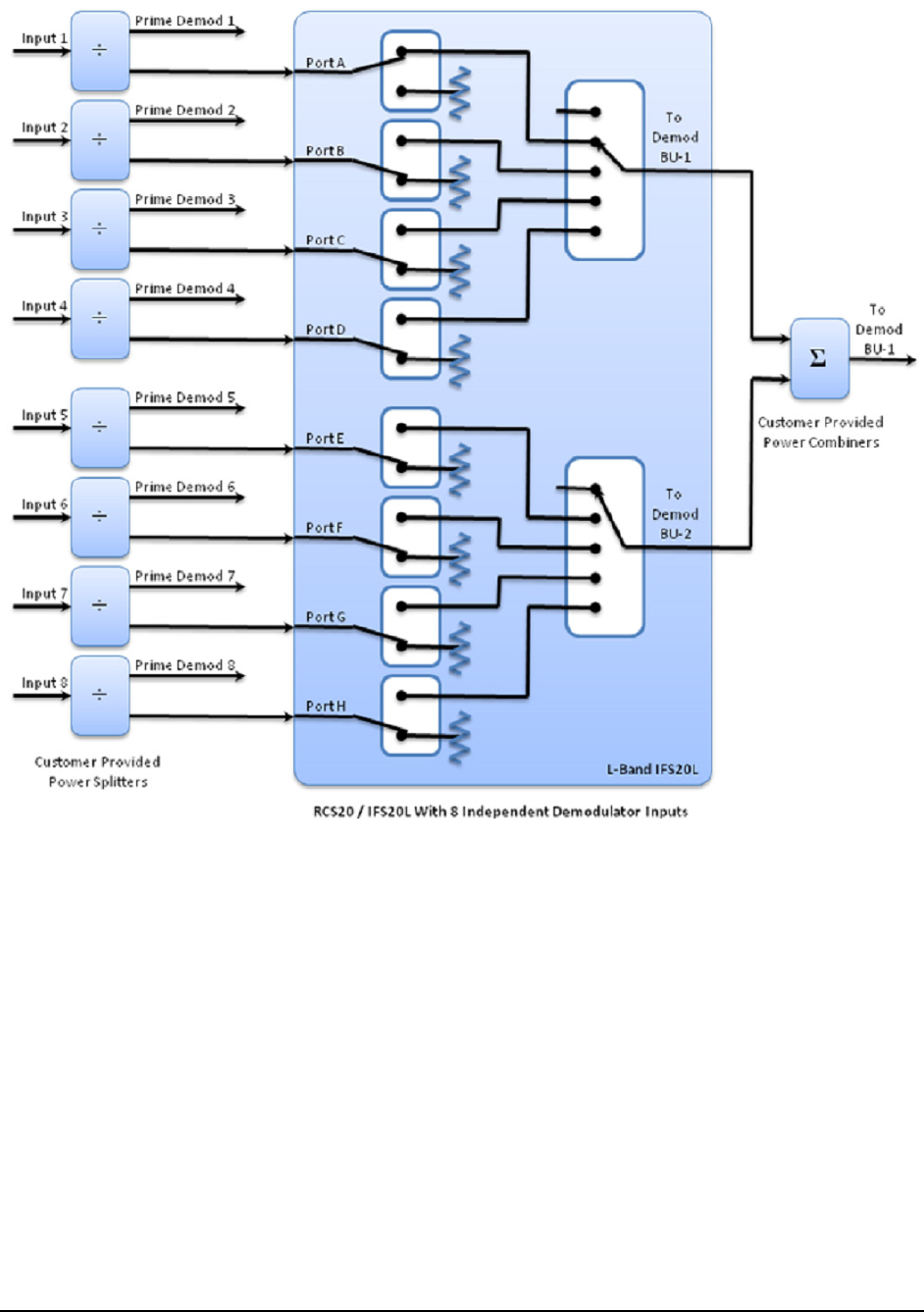

Figure C-2 depicts a block diagram of the switch setup in combined, 8-input mode.
Figure C-2. RCS20 L-Band Demodulator IFS Combined Configuration
This configuration is available in the 1:9 configuration and only for the IFS L-Band Demodulator. See the
Chapter 4 BANK CONTROL CONFIGURATION section for the software control used to either combine
the IFS (8-input) or return the switch to its original, default 4-input configuration.
