CDM-840 Remote Router Revision 2
Ethernet-based Remote Product Management MN-CDM840
6–45
6.4.4.5.2.5 Configuration | WAN | Compression
Use this page to configure the Payload and Header Compression feature, if enabled.

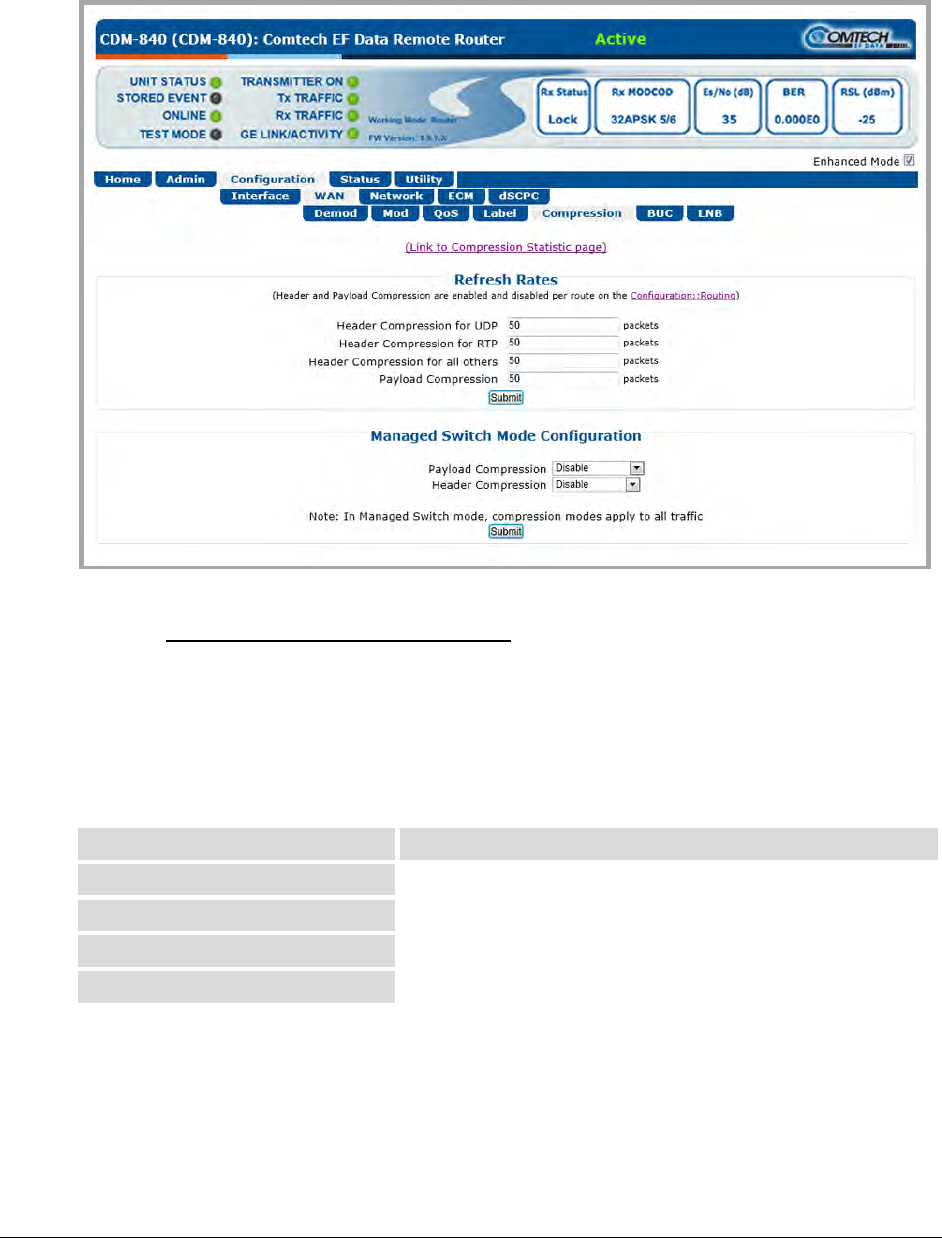

Figure 6-20. Configuration | WAN | Compression Page
Click the (Link to Compression Statistic page) hyperlink to access the Status | Statistics |
Compression page (Sect.
6.4.4.6.1.3).
Refresh Rates
Enter each refresh rate, from 1 to 600 packets or 1 second (whichever comes first). From left to
right:
Feature
Description
Header Compression for UDP
User Datagram Protocol refresh rate
Header Compression for RTP
Real Time Protocol refresh rate
Header Compression for all others Default protocol refresh rate
Payload Compression Payload Compression refresh rate
Set the desired rates. Click [Submit] to save.
