CDM-840 Remote Router Revision 2
Ethernet-based Remote Product Management MN-CDM840
6–46
Managed Switch Mode Configuration (BPM Mode)
Use the drop-down lists to Enable or Disable Payload and Header Compression for all of the
transmitted packets when operating in Bridge Point-to-Multipoint (BPM) Mode. Click [Submit]
to save.
In Managed Switch Mode, the selected Compression modes apply to all traffic.
6.4.4.5.2.6 Configuration | WAN | BUC (Block Upconverter)
This page is operational only when an optional BLOCK UPCONVERTER is installed.
Use this page to configure Block Upconverter parameters, and to display the BUC status for
L-Band operation.

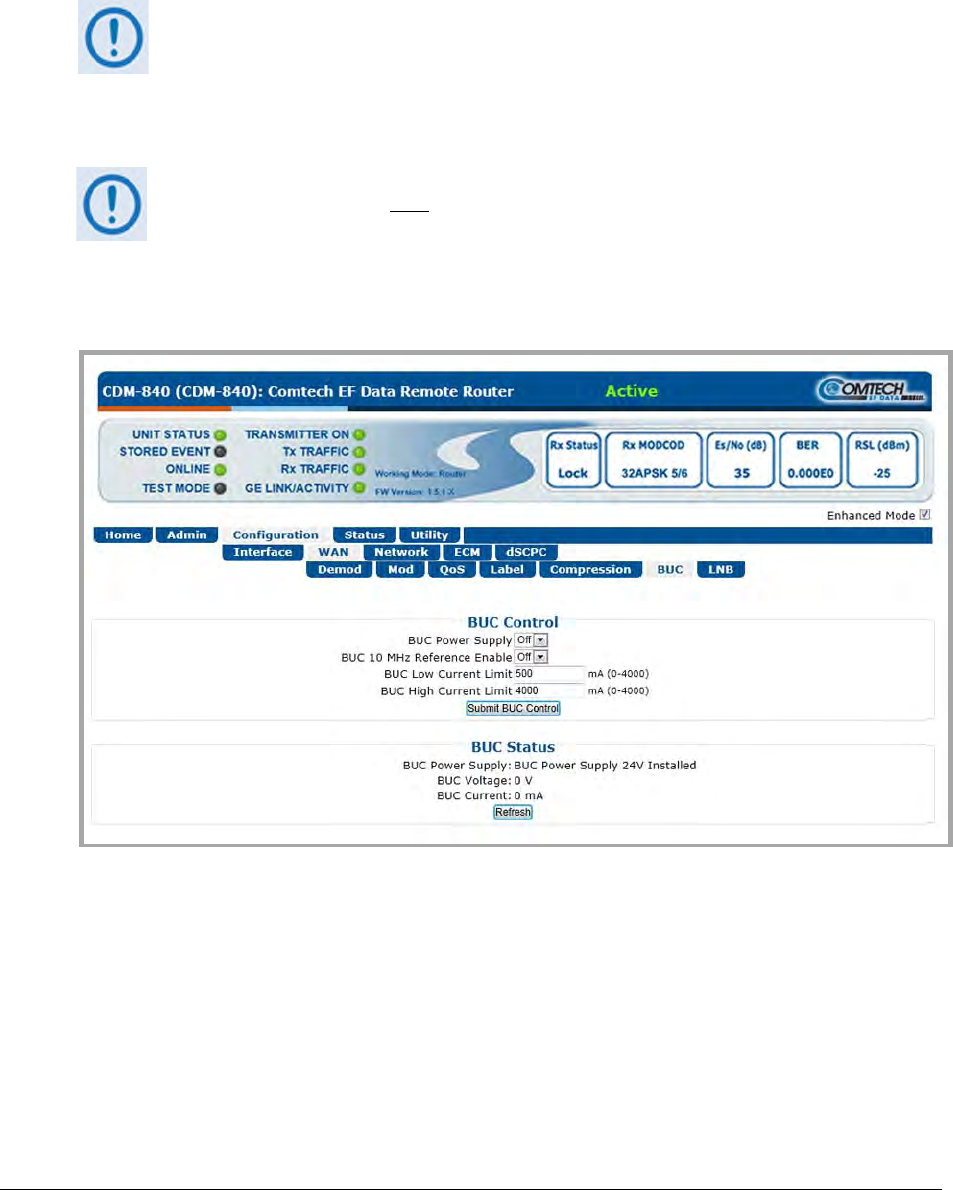

Figure 6-21. Configuration | WAN | BUC Page
BUC Control
The acceptable/valid operating range for each item in this section is provided in parentheses.
• BUC Power Supply – Use the drop-down list to select the BUC Power Supply as Off or On.
• BUC 10 MHz Reference Enable – Use the drop-down list to select the BUC 10 MHz
Reference Enable as Off or On.
