CDM-840 Remote Router Revision 2
Installation MN-CDM840
2–4
2.2.1 Installing the Optional Rear-Mounting Support Brackets Kit
KT-0000XXX Primary Rear Support Bracket Kit
Item
Quantity
CEFD Part Number Description
KT-0000168
KT-0000195
1
2
2
FP-0000913
Plate, Adapter
2
4 4 HW/10-32X3/8FLT Screw, #10 Flat Head
3
1
–
KT/6228-2
4” Rear Support Bracket Kit
– 1 KT/6228-3 10” Rear Support Bracket Kit
KT/6228-X Rear Support Bracket Kit
Item
Quantity
CEFD Part Number Description
KT/6228-2 KT/6228-3
A
2
2
HW/10-32SHLDR
Screw, #10 Shoulder
B 4 4 HW/10-32FLT Washer, #10 Flat
C
2
2
HW/10-32SPLIT
Washer, #10 Split
D 2 2 HW/10-32HEXNUT Nut, #10 Hex
E
4
4
HW/10-32x1/2RK
Bolt, #10 Rack Bracket
F
2 – FP/6138-2 Bracket, Rear Support – 4”
– 2 FP/6138-3 Bracket, Rear Support – 10”

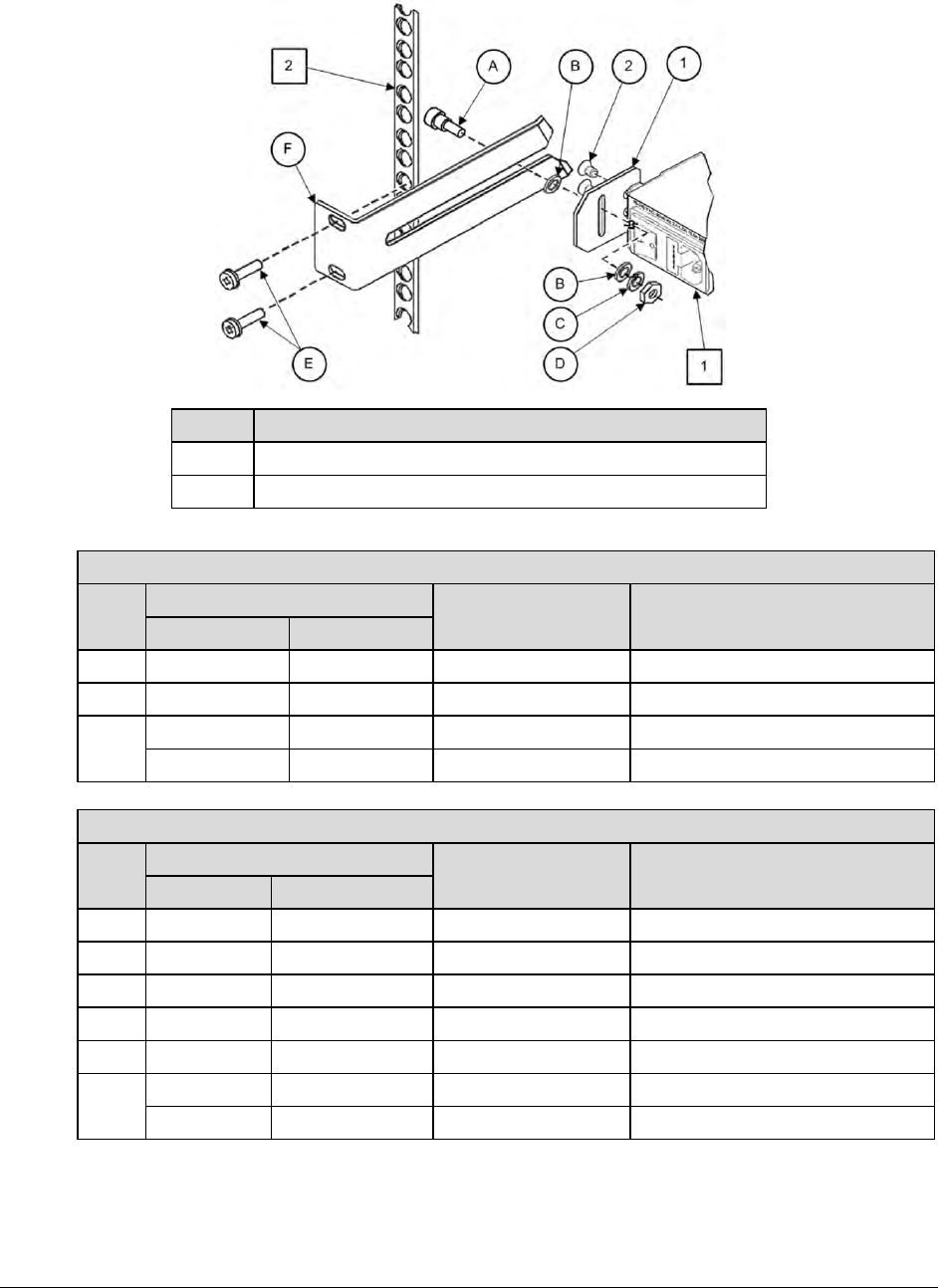

Figure 2-3. Installing the Optional Rear-Mounting Support Brackets Kit
Feature
Description
1 Back of Unit
2
Rack Enclosure Threaded Rear Mounting Rail (typical)
