CDM-840 Remote Router Revision 2
Ethernet-based Remote Product Management MN-CDM840
6–65
6.4.4.6.1.3 Status | Statistics | Compression
This page is functional only when Tx and Rx Header and Payload Compression are
enabled. Use the Configuration | WAN | Compression page (Sect.
6.4.4.5.2.5) to
enable or disable Compression operation.
Use this page to view read-only cumulative WAN, Payload Compression, and Header
Compression statistics.

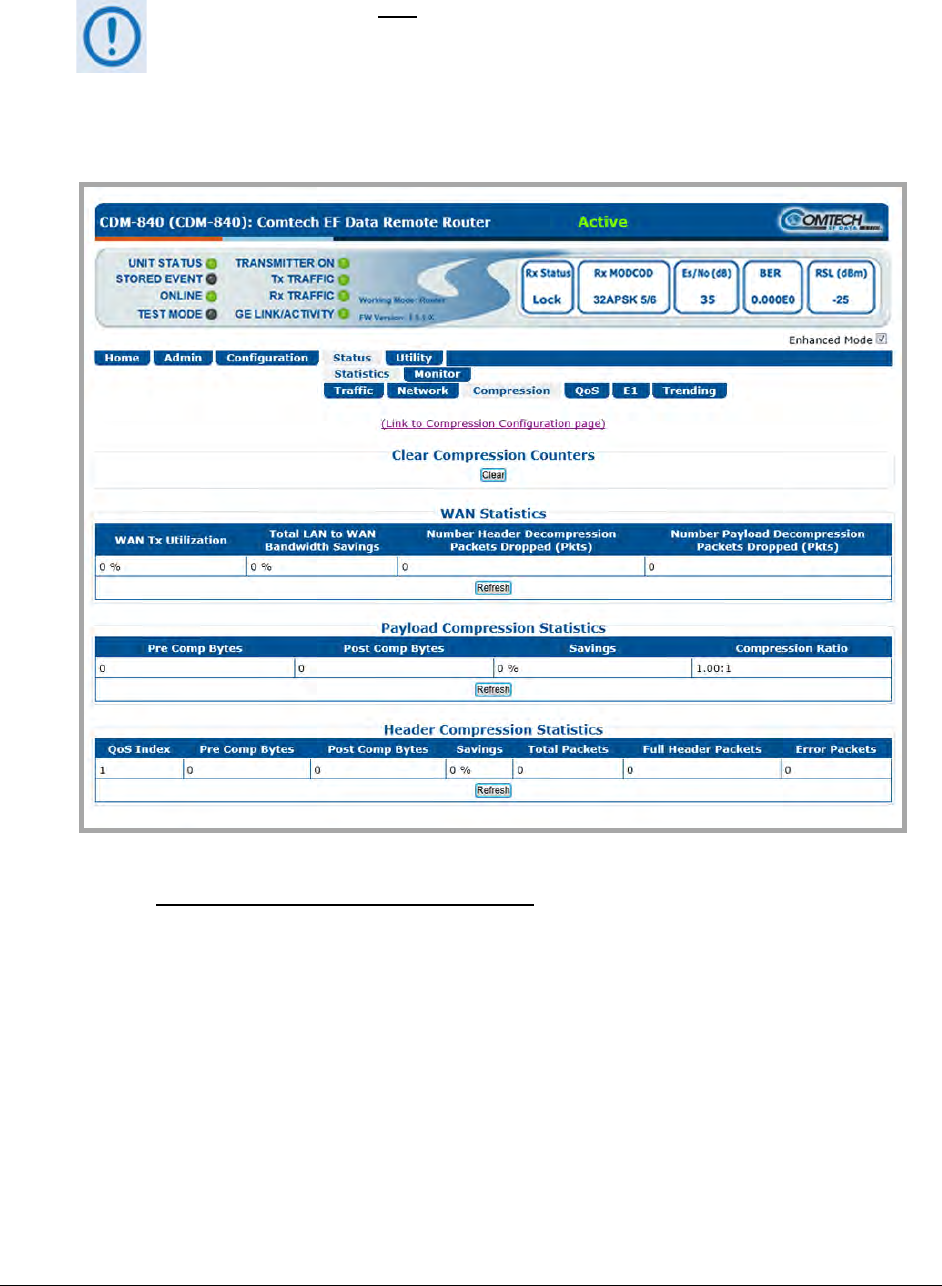

Figure 6-33. Status | Statistics | Compression Page
Click the (Link to Compression Configuration page) hyperlink to access the Configuration |
WAN | Compression page (Sect.
6.4.4.5.2.5).
Clear Compression Counters
Click [Clear] to clear all compression statistics from the buffer.
WAN / Payload Compression / Header Compression Statistics
Click [Refresh] to update each page section with its latest available statistics.
