CDM-840 Remote Router Revision 2
Ethernet-based Remote Product Management MN-CDM840
6–9

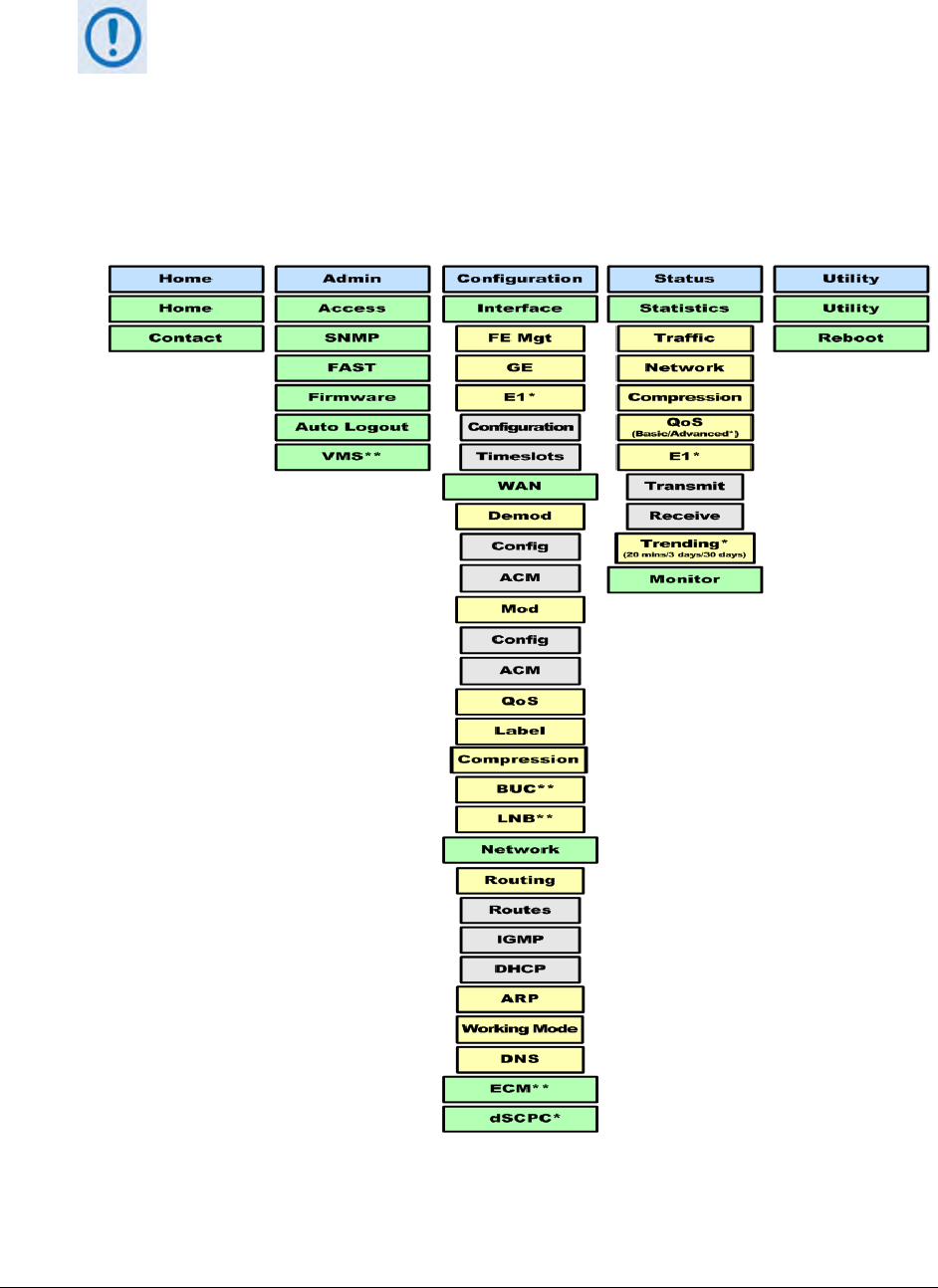

6.4.3 Web Server Interface – Menu Tree
1. Any diagram block that is marked with (*) denotes a page that is functional
only when that particular FAST feature has be
en purchased and activated.
Diagram blocks marked with (**) denote pages that are functional only when a
VIPERSAT MANAGEMENT SYSTEM (VMS), and a Block Upconverter (BUC) OR a
Low Noise Block Downconverter (LNB) is installed and
is recognized as
operational.
2. E1 Interface operation is not available with the CDM-840 Reduced Form Factor
Outdoor Remote Router.
The CDM-840 Web Server Interface features five navigation tabs (shown in blue) located below
the VFD at the top of each page. Primary page tabs (green) and nested page tabs (yellow and
gray) provide access to individual Web pages. Click any navigation tab to continue.
