CDM-840 Remote Router Revision 2
Appendix G MN-CDM840
G–9
Association of the Link Quality Metric to its comparative Link Quality is as follows:
Link Quality Metric Link Quality
8 Excellent
7 Very Good
6 Good
5 Fair
4 Average
3 Poor
2
Very Poor
1
Note that ‘8’ on the graph indicates the highest quality, with no voice traffic discard.
G.2.3.3 RANOp Savings

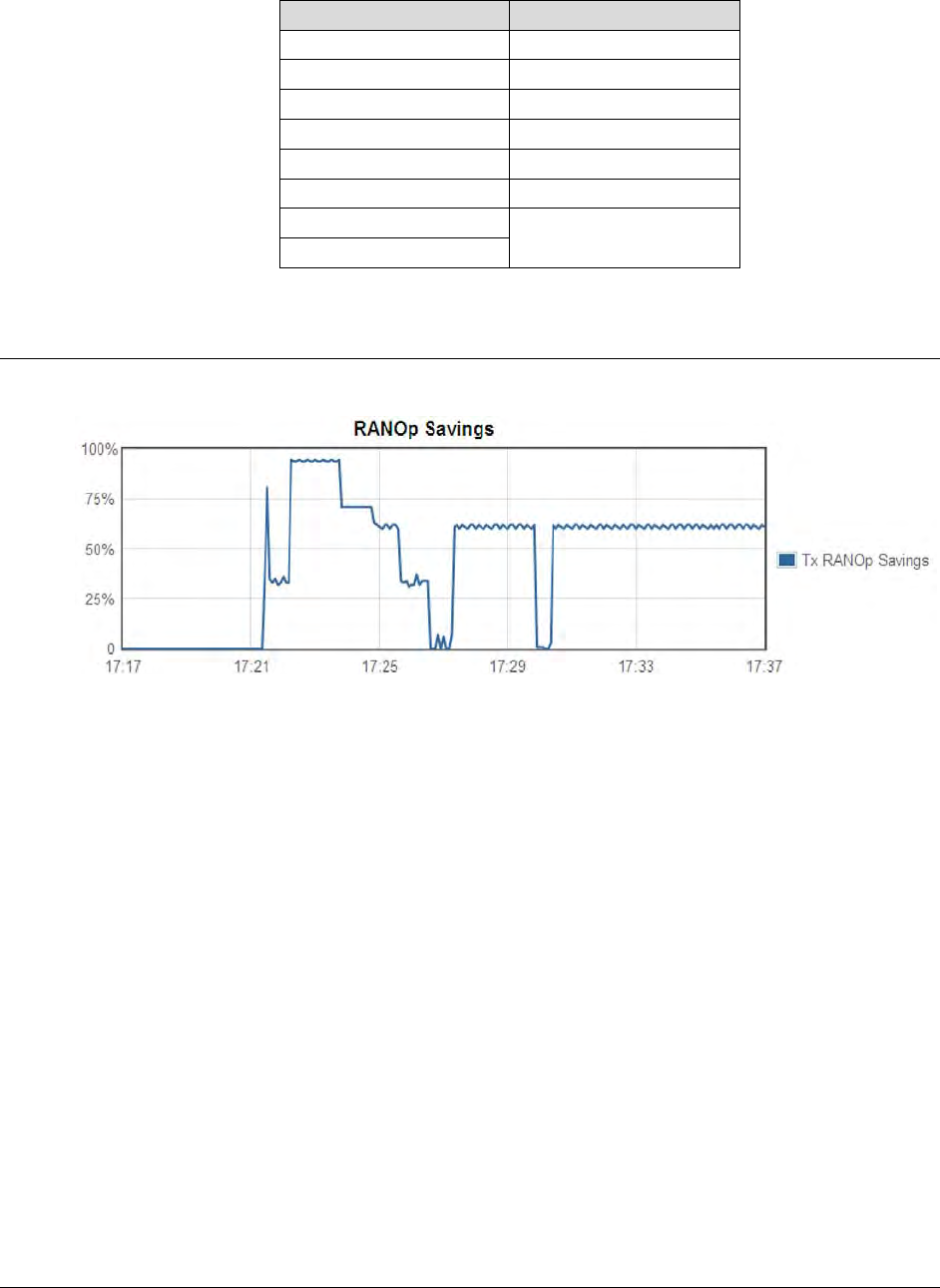

This graph illustrates the performance indicator for Tx RAN Optimization on an actual
“percentage of savings” basis over a 20-minute, 3-day, or 30-day time span (this example shows
the graph with the 20-minute time span selected).
