CDM-840 Remote Router Revision 2
Ethernet-based Remote Product Management MN-CDM840
6–49
6.4.4.5.3 Configuration | Network Pages
Precision Time Protocol is not available in this firmware release. The PTP tab, while
available and selectable on this interface, is therefore non-functional.
Click the Configuration | Network tabs, and then select the Routing, ARP, Working Mode, or
DNS tab to continue.
6.4.4.5.3.1 Configuration | Network | Routing Pages
Click the Configuration | Routing tabs, and then select the Routes, IGMP, or DHCP tab to
continue.
6.4.4.5.3.1.1 Configuration | Network | Routing | Routes
Use this page to enter static routes for IP traffic over the satellite or to another device on the
local LAN.

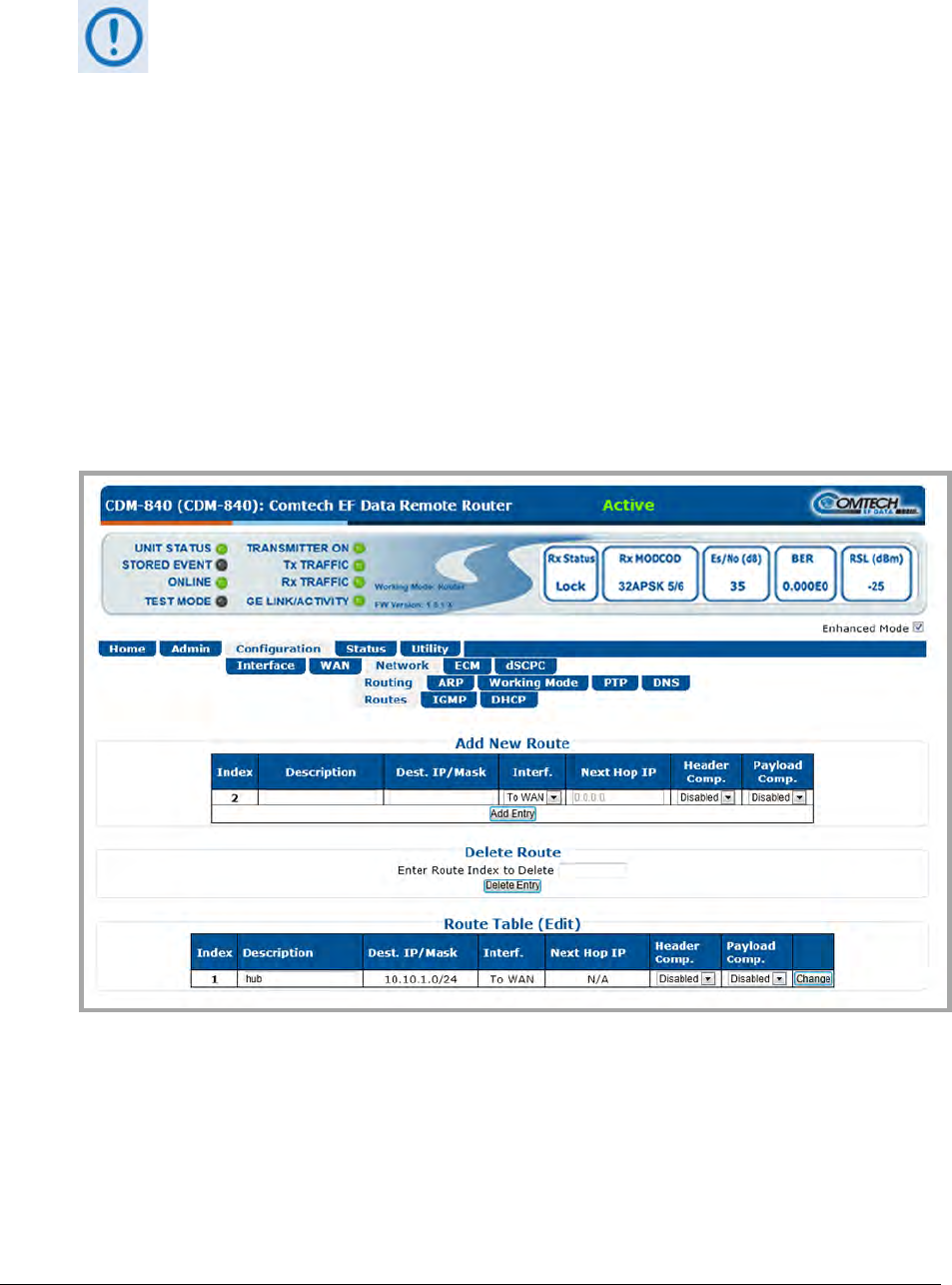

Figure 6-23. Configuration | Network | Routing | Routes Page
