CDM-840 Remote Router Revision 2
Ethernet-based Remote Product Management MN-CDM840
6–70

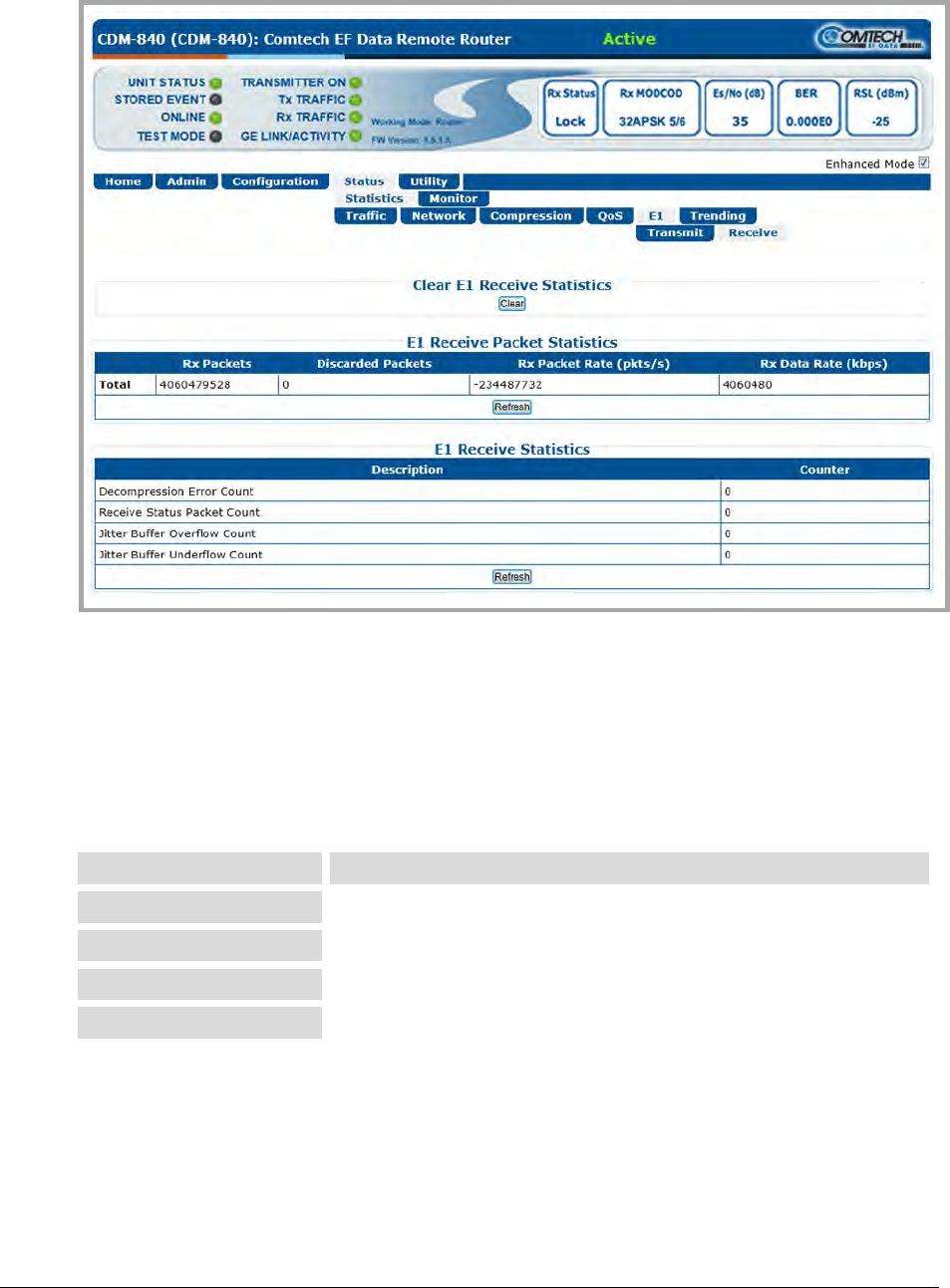

6.4.4.6.1.5.2 Status | Statistics | E1 | Receive
Figure 6-36. Status | Statistics | E1 | Receive Page
Clear E1 Receive Statistics
Click [Clear] to clear all E1 Receive Statistics from the buffer.
E1 Receive Packet Statistics
From left to right:
Column
Description
Rx Packets
Number of RAN packets received.
Discarded Packets
Number of discarded Rx packets (errored packets).
Rx Packet Rate (pkts/s)
Current number of packets received (packets per second).
Rx Data Rate (kbps)
Current Rx data rate (kilobits per second).
Click [Refresh] to update this section with its latest available statistics.
