CDM-840 Remote Router Revision 2
Ethernet-based Remote Product Management MN-CDM840
6–62
6.4.4.6 Status Pages
The Status pages provide status, event logging, and operational statistics windows.
Click the Status tab, and then select the Statistics or Monitor tab to continue.
6.4.4.6.1 Status | Statistics Pages
Click the Statistics | Statistics tabs, and then select the Traffic, Router, Compression, QoS, and
for the CDM-840 only, the E1 or Trending tab to continue.
6.4.4.6.1.1 Status | Statistics | Traffic
Use this page to view read-only, abridged status windows pertaining to the basic operational
statistics for the Ethernet, Modulator, and Demodulator traffic.

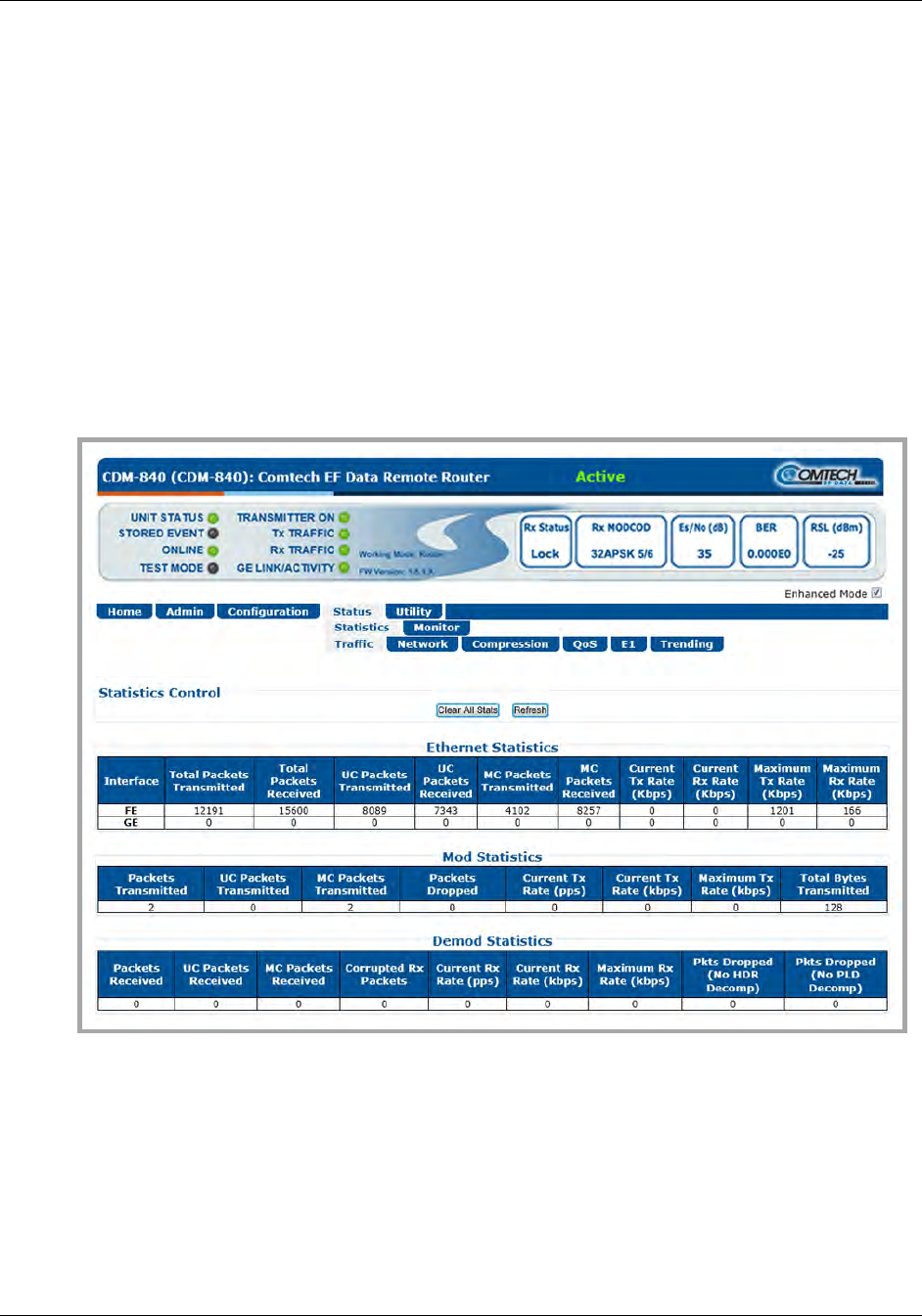

Figure 6-31. Status | Statistics | Traffic Page
Statistics Control
Click [Clear All Stats] to clear all operational statistics from the buffer. Otherwise, click [Refresh]
to update the page with its latest available statistics.
