CDM-840 Remote Router Revision 2
Ethernet-based Remote Product Management MN-CDM840
6–66
6.4.4.6.1.4 Status | Statistics | QoS
The appearance of this page changes depending on the selected QoS Control Mode.
(TOP) Page with QoS Control Mode = OFF, Max/Pri, or Min/Max
(BOTTOM) Page with QoS Control Mode = Diffserv (Banner, VFP, Menu Bar not shown)

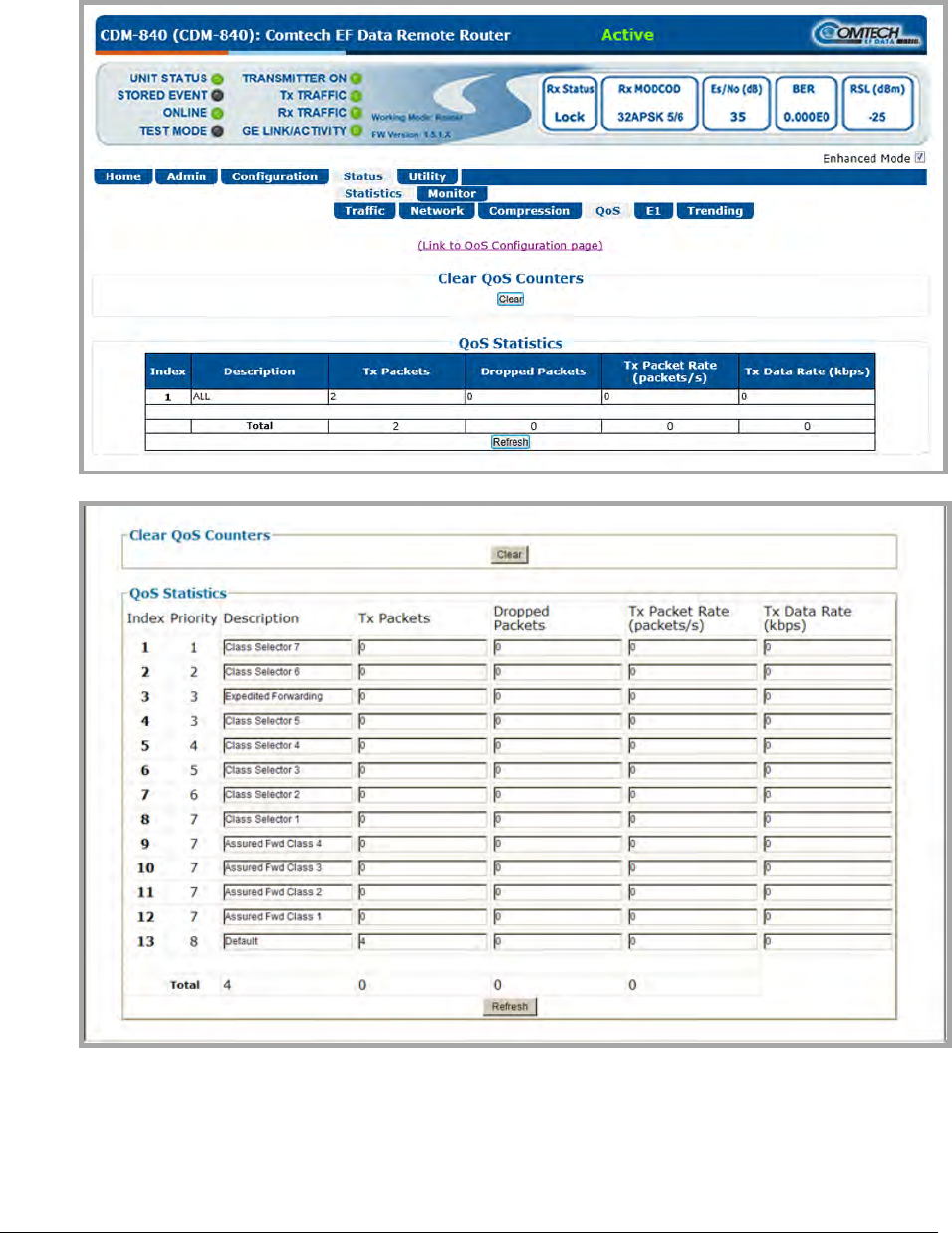

Figure 6-34. Status | Statistics | QoS Pages
