CDM-840 Remote Router Revision 2
Ethernet-based Remote Product Management MN-CDM840
6–13
6.4.4.3.1 Admin | FAST
See Chapter 5. FAST ACTIVATION PROCEDURE for complete details and
instructions for upgrading the CDM-840 Remote Router FAST features.
1. Tx Header and Payload Compression and Quality of Service (QoS)/Advanced
QoS are standard (non-
FAST) operational features for Comtech EF Data’s
Advanced VSAT Series group of
products. If these features are listed in the
FAST Configuration table, they are always indicated as Enabled.
2.
PTP is not available in this firmware release. Once operable, this protocol will
be used to synchronize clocks throughout a computer network. When the
hardware required for this option is not installed in the CDM-840, the Web
page displays the message “PTP not supported with installed hardware”.
3. E1 Interface operation is not available with the CDM-840 Reduced Form Factor
Outdoor Remote Router
The CDM-840 has a number of optional features that may be activated after purchase of the
unit. Fully Accessible System Topology (FAST) Access Codes are unique authorization codes that
may be purchased from Comtech EF Data during normal business hours, and then loaded into
the unit using this page.

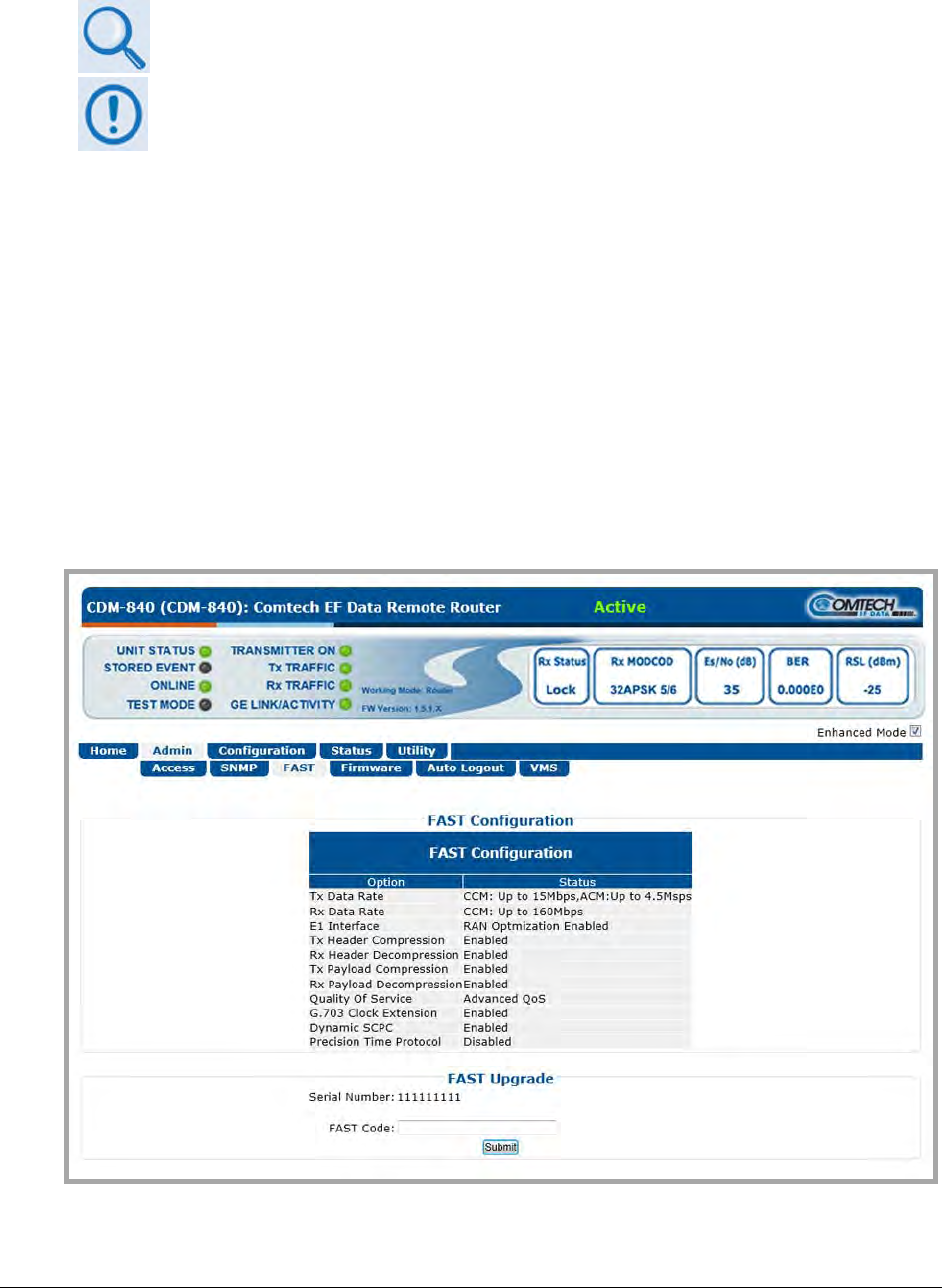

Figure 6-5. Admin | FAST Page
