CDM-840 Remote Router Revision 2
FAST Activation Procedure MN-CDM840
5–2
5.2 FAST Activation via the Web Server Interface
See Sect. 6.4.4.2.3 Admin | FAST for the complete information on activating FAST
Features via the CDM-840 Web Server Interface.
Use the Web Server Interface ‘Admin | FAST’ page to manage CDM-840 FAST Features. This
page provides scrollable list boxes that display the availability and activation status for all FAST
options. FAST code entry/option activation control is also provided.

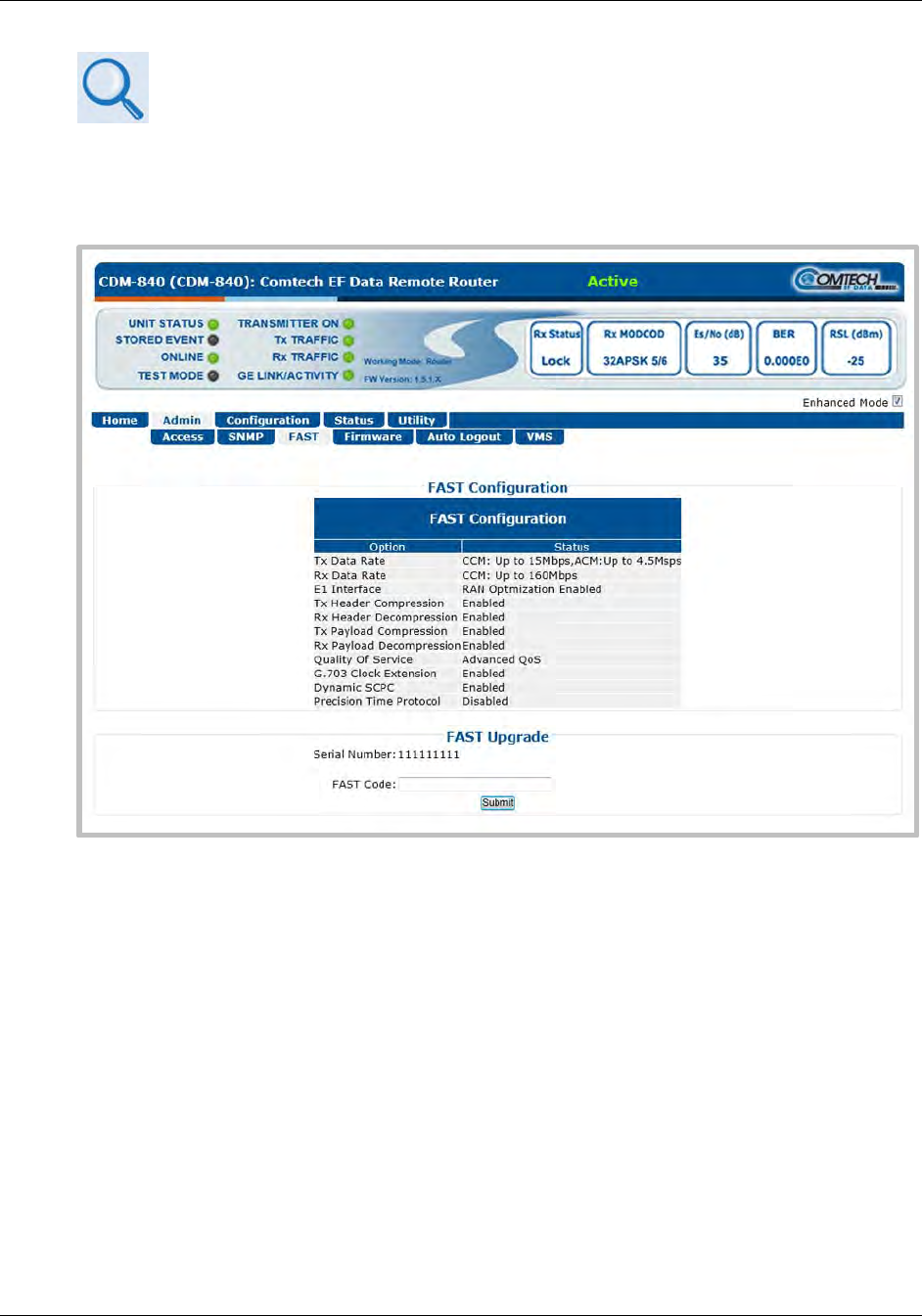

Figure 5-1. CDM-840 Web Server (HTTP) Interface – ‘ADMIN | FAST’ page
