CDM-840 Remote Router Revision 2
Introduction MN-CDM840
1–4
1.3 CDM-840 Features
1.3.1 Physical Description
The CDM-840 Remote Router is constructed as a 1RU-high rack-mounting chassis. Handles at
the front facilitate removal from and placement into a rack. The unit can be freestanding if
desired.
• Sect. 1.4 CDM-840 Specifications
• Sect. 2.1 Installation into a Rack Enclosure
1.3.2 Dimensional Envelope

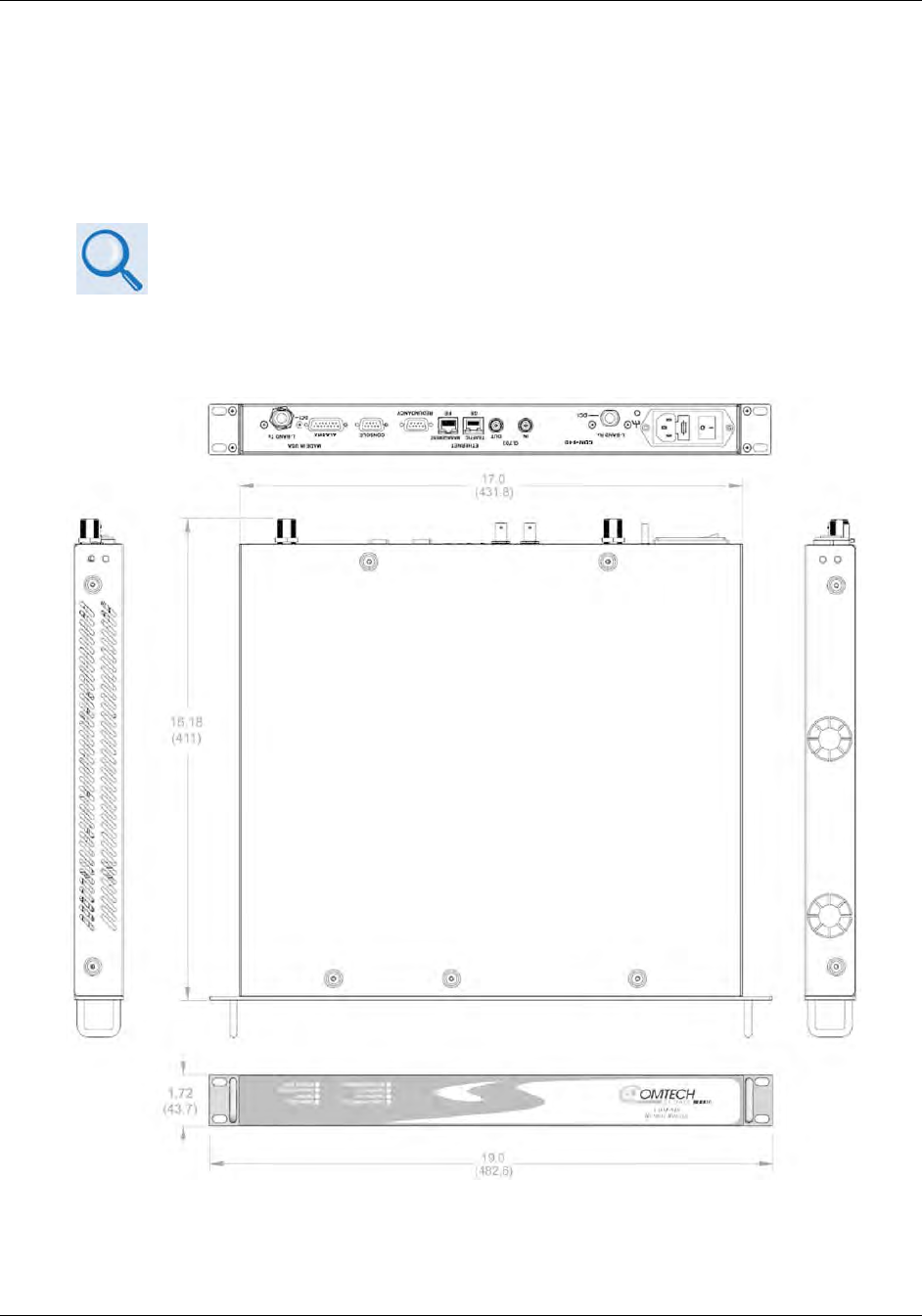

Figure 1-3. CDM-840 Dimensional Envelope
