CDM-840 Remote Router Revision 2
Ethernet-based Remote Product Management MN-CDM840
6–64
6.4.4.6.1.2 Status | Statistics | Network Pages
Precision Time Protocol is not available in this firmware release. The PTP tab, while
available and selectable on this interface, is therefore non-functional.
Click the Status | Statistics | Network tabs, and then select the Router tab to continue.
6.4.4.6.1.2.1 Status | Statistics | Network | Router Page
Use this page to view cumulative traffic information.

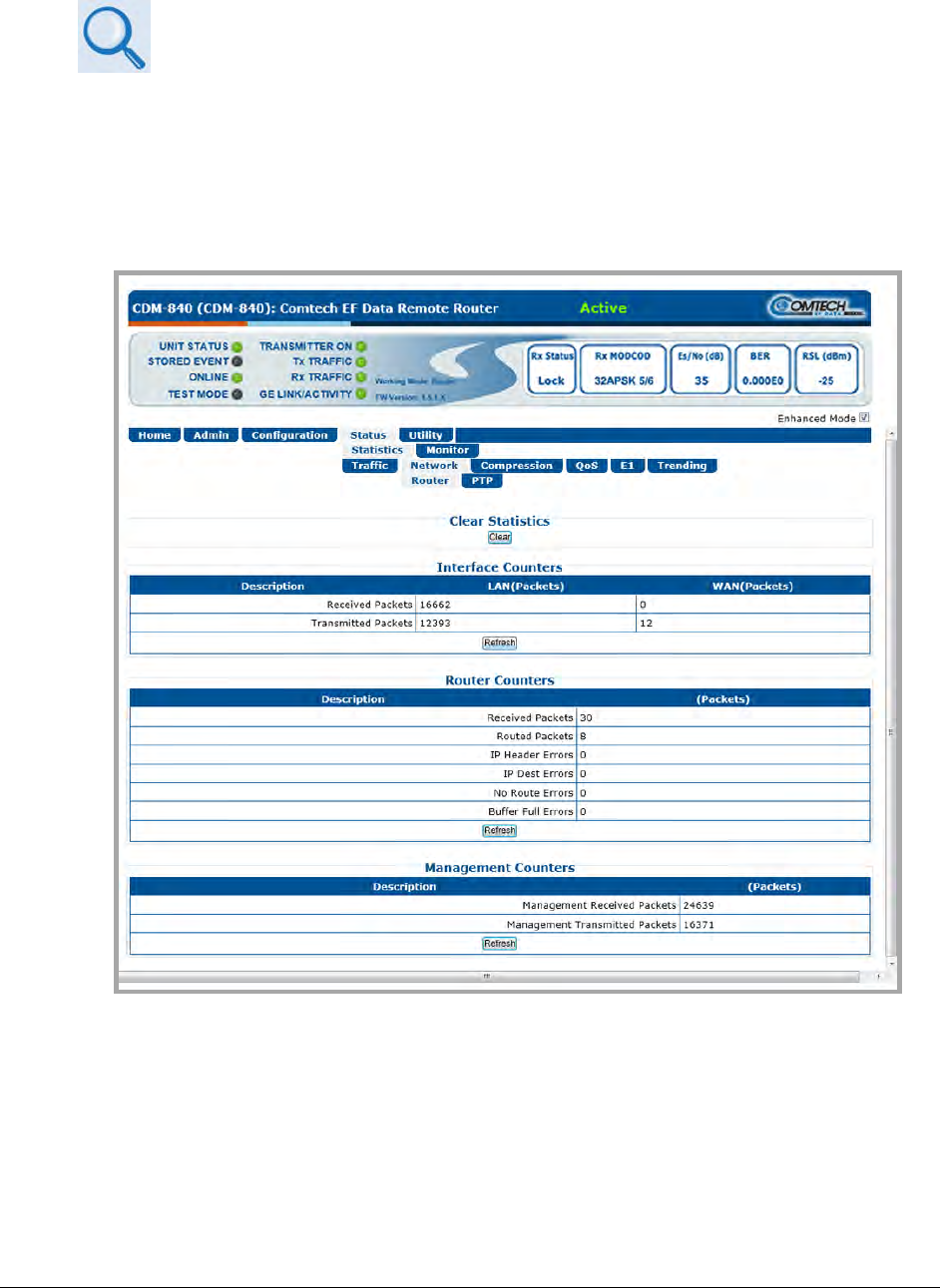

Figure 6-32. Status | Statistics | Network | Router Page
Clear Statistics
Click [Clear] to clear all operational statistics from the buffer.
Interface Counters / Router Counters
For each section, click [Refresh] to update the section with its latest available statistics.
