CDM-840 Remote Router Revision 2
Appendix G MN-CDM840
G–7
G.2.3 Performance Monitoring
The RAN Optimizer collects detailed usage and performance statistics that are accessible using
the CDM-840 Web Server (HTTP) Interface Status | Statistics | Trending page (Figure G-6).
Viewable by selectable time spans, these graphs display information needed to monitor the link
performance and to take appropriate action as needed.
See Chapter 6. ETHERNET-BASED REMOTE PRODUCT MANAGEMENT for more
information about the CDM-840 Web Server (HTTP) Interface
and use of the
‘Status | Statistics | Trending’ page.

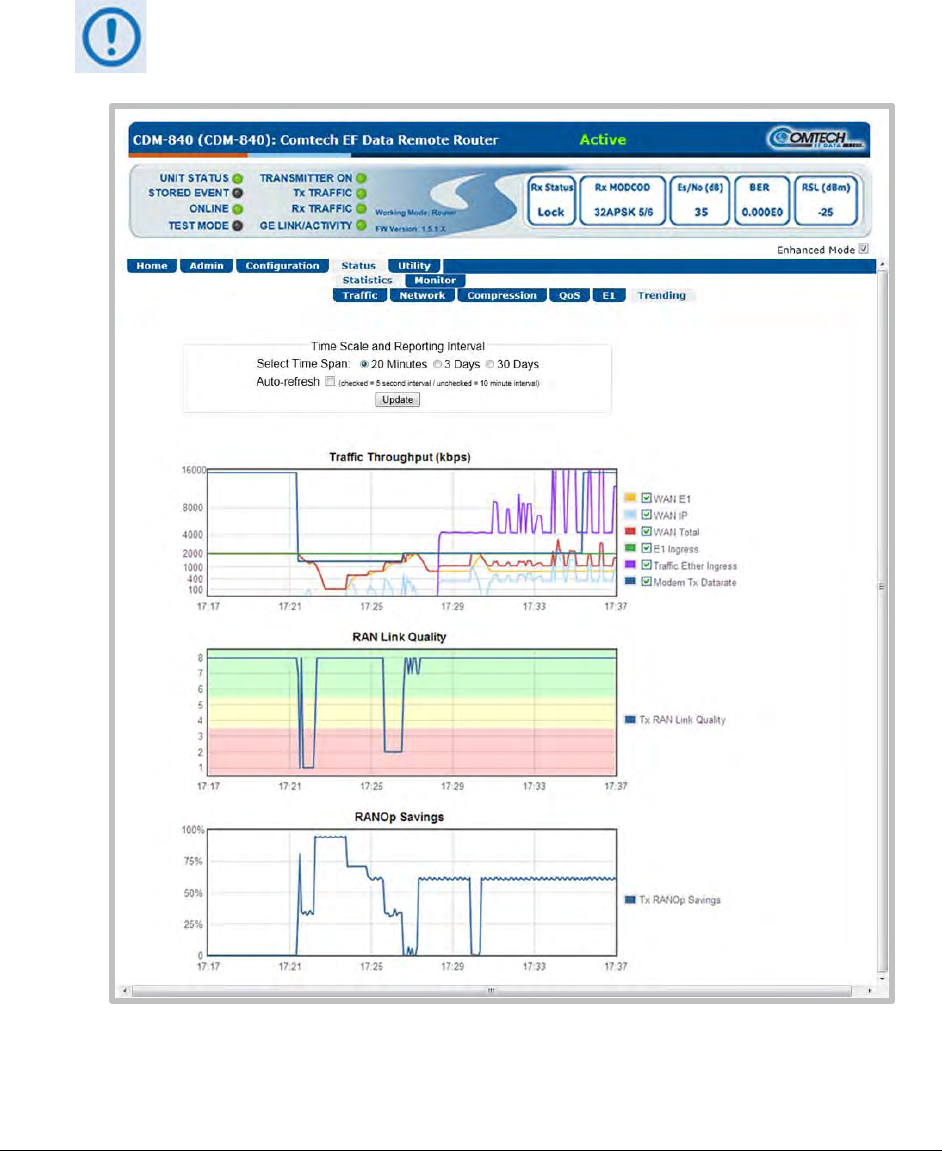

Figure G-6. Status | Statistics | Trending Page
